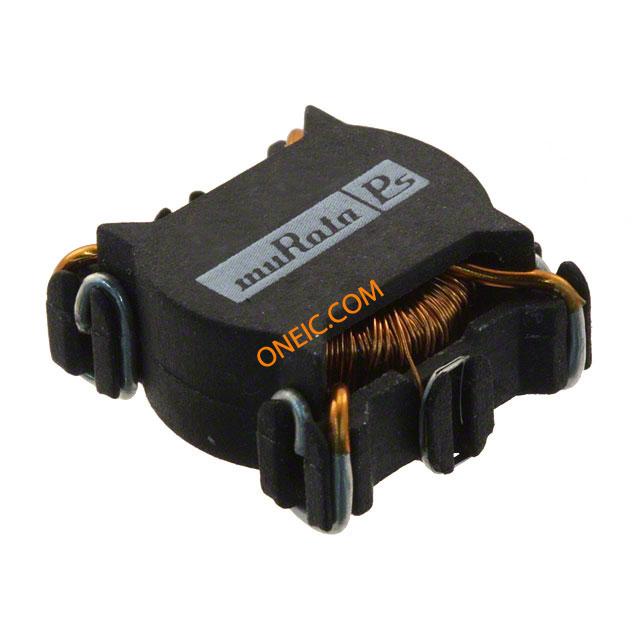

55200C
Current Transformer 1:1:200 1000Vrms 0.0023Ohm Prim. DCR 3.6Ohm Sec. DCR 15000mA Surface Mount
廠商型號:
55200C
芯天下內部編號:
233-55200C
生產廠商:
murata power solutions
描述:
Current Transformer 1:1:200 1000Vrms 0.0023Ohm Prim. DCR 3.6Ohm Sec. DCR 15000mA Surface Mount
產品類別:
Transformer|Current Transformer
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Maximum DCR Primary Side | 0.0023 Ohm |
| Maximum DCR Secondary Side | 3.6 Ohm |
| Operating Frequency | 50 to 500 KHz |
| Mounting | Surface Mount |
| Primary Side Current | 15000 mA |
| Turns Ratio | 1:1:200 |
| Standard Package | Tape & Reel |
| Unit Pack | 35 |
| MOQ | 35 |
| Subcategory | Current Transformer |
| Packaging | Tape and Reel |
| Lead Time | 84 Days |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 35 |
| Product Category | Current Transformer Sensors |
| Termination Style | SMD/SMT |
| Mounting Style | SMD/SMT |

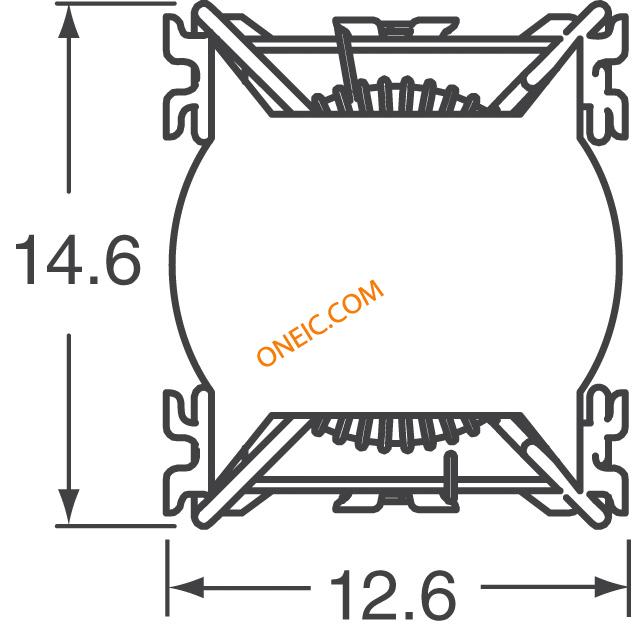

| Height | 14.6 mm |

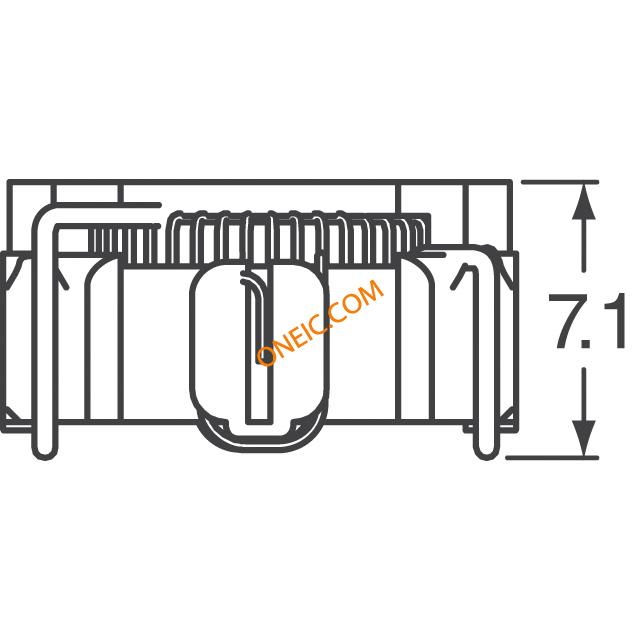

| Width | 7.1 mm |
| Length | 12.6 mm |
| Secondary Resistance | 3.6 Ohms |
| RoHS | RoHS Compliant |
