562A022-25-0
Cable Boots HS-TRANSITION
廠商型號:
562A022-25-0
芯天下內部編號:
35-562A022-25-0
生產廠商:
TE Connectivity / Raychem
描述:
Cable Boots HS-TRANSITION
產品類別:
Wire & Cable|Wire Protection & Management|Cable Boots

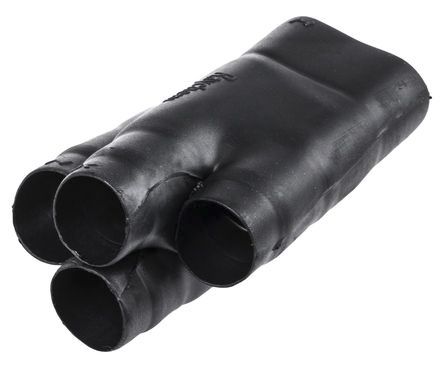

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Cable Boots |
| RoHS | RoHS Compliant |
| Type | Transition |
| Material | Elastomer, Fluid Resistant Modified |
| Color | Black |
| Packaging | Bulk |
| Part # Aliases | 823811-000 823811N002 |
| Series | 562A0 |
| Length | 36.1 mm |
| 顏色 | 黑色 |
| 內徑 次 | 9.4mm |
| 襯有膠粘劑 | 否 |
| 最高工作溫度 | +150°C |
| 材料 | 耐流體合成橡膠 |
| 收縮直徑 主 | 9.7mm |
| 收縮直徑 次 | 5.3mm |
| 最低工作溫度 | -75°C |
| 類型 | 分支電纜套管 |
| 收縮溫度 | +135°C |
| 內徑 主 | 19.3mm |
| 分接數目 | 4 |
| Inside Diameter Range (Body) | 9.7 – 19.3?mm?[?.382 – .76?in?] |
| Inside Diameter Range (Leg 1) | 5.3 – 9.4?mm?[?.21 – .37?in?] |
| Wire/Cable OD?(mm) | 11, 12, 14 |
| Number of Branches/Legs | 4 |
| 工作溫度范圍 | -75 – 150?°C?[?-103 – 302?°F?] |
| Power Cable Accessory | No |
| 材料系統代碼 | 25 |
| Adhesive Code | S1125 |
| Molded Part Shape | One to Four Cables |
| Fluid/Chemical Resistance | Long-term exposure at elevated temps |
| Wire/Cable Main Branch OD?(mm) | 6, 7, 8 |
| 粘合劑類型 | 單獨購買的粘合劑 |
| 產品類型 | 模制部件 |
| Inside Diameter Range (Leg 3) | 5.3 – 9.4?mm?[?.21 – .37?in?] |
| Wire/Cable Sm Branch OD?(in) | .24, .28, .31 |
| Molded Part Type | Transition |
| Inside Diameter Range (Leg 4) | 5.3 – 9.4?mm?[?.21 – .37?in?] |
| Adhesive Options | S1125 Separate Adhesive |
| Resistant To | Fluids |
| Wire/Cable Main Branch OD?(in) | .24, .28, .31 |
| Transition Type | 1 to 4 Cables |
| Material Code | 25 |
| Inside Diameter Range (Leg 2) | 5.3 – 9.39?mm?[?.209 – .37?in?] |
| Wire/Cable OD?(in) | .43, .47, .55 |
| 尺寸代碼 | 22 |
| Adhesive Pre-Coat | No |
| 注釋 | 請聯系 Raychem 以了解更多粘合劑和/或切斷防護罩長度信息 |
| Special Requirements | Flame Retarded |
| 符合政府資質 | 否 |
| Wire/Cable Sm Branch OD?(mm) | 6, 7, 8 |
