581102B02500G
Heat Sink Passive TO-220 Thru-Hole 16.8°C/W Black Anodized
廠商型號:
581102B02500G
芯天下內部編號:
19-581102B02500G
生產廠商:
aavid thermalloy
描述:
Heat Sink Passive TO-220 Thru-Hole 16.8°C/W Black Anodized
產品類別:
Thermal Management|Heat Sinks
客戶編號:
規格書:
查看PDF

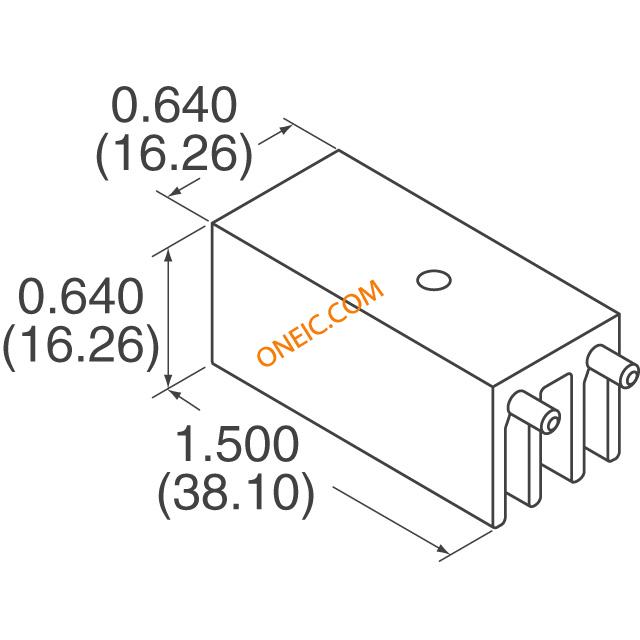

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Passive |
| Device Cooled | TO-220 |
| Thermal Resistance | 16.8 °C/W |
| Attachment Method | Solder Pin |
| Product Height | 38.1 mm |
| Product Length | 16.26 mm |
| Finish | Black Anodized |
| Standard Package | Bulk |
| Product Category | Heat Sinks |
| RoHS | RoHS Compliant |
| Product | Heat Sinks |
| Mounting Style | Through Hole |
| Heatsink Material | Aluminum |
| Fin Style | Flat Back Extruded |
| Length | 16.26 mm |
| Width | 16.26 mm |
| Height | 38.1 mm |
| Designed for | TO-220 |
| Color | Black |
| Factory Pack Quantity | 250 |
| Part # Aliases | 041799 |
| Height Off Base (Height of Fin) | 0.640" (16.26mm) |
| Material | Aluminum |
| Thermal Resistance @ Natural | 16.8°C/W |
| Shape | Rectangular |
| Power Dissipation @ Temperature Rise | 3W @ 50°C |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Thermal Resistance @ Forced Air Flow | 5.0°C/W @ 200 LFM |
| Other Names | HS388 |
| rohs | Lead free / RoHS Compliant |
| Rad Hardened | No |
| Product Length (mm) | 16.26 mm |
| Product Depth (mm) | 16.26 mm |
| Product Height (mm) | 38.1 mm |
| 冷卻封裝 | TO-220 |
| 材料 | Aluminum |
| 形狀 | Rectangular |
| 寬度 | 0.640" (16.26mm) |
| 材料鍍層 | Black Anodized |
| 類型 | Board Level, Vertical |
| 長度 | 1.500" (38.1mm) |
| 連接方法 | Bolt On and PC Pin |
| 離基底高度（鰭片高度） | 0.640" (16.26mm) |
