594D107X0025R2T

Cap Tant Solid 100uF 25V R CASE 20% (7.2 X 6 X 3.5mm) SMD T/R

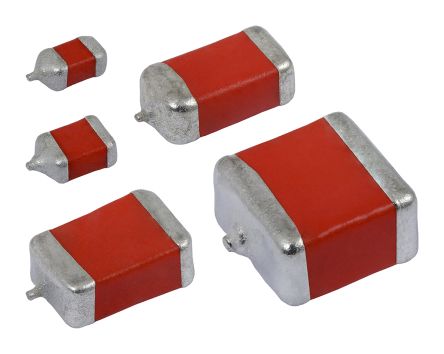

Thumbnail 594D107X0025R2T Thumbnail 594D107X0025R2T Thumbnail 594D107X0025R2T Thumbnail 594D107X0025R2T Thumbnail 594D107X0025R2T
廠商型號: 594D107X0025R2T
芯天下內部編號: 5-594D107X0025R2T
生產廠商:
vishay / sprague vishay / sprague
描述: Cap Tant Solid 100uF 25V R CASE 20% (7.2 X 6 X 3.5mm) SMD T/R
產品類別: Capacitor|Capacitor Tantalum Solid SMT
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package/Case R
Capacitance Value 100 uF
Voltage 25 Vdc
Tolerance 20 %
Case Style Conformal Coated
Equivalent Series Resistance 0.09 Ohm
Product Length 7.2(Max) mm
Product Height 3.5 mm
Product Depth 6 mm
Maximum Operating Temperature 125 °C
Construction Flat
Minimum Operating Temperature -55 °C
Operating Temperature -55 to 125 °C
Standard Package Tape & Reel
Product Category Tantalum Capacitors - Solid SMD
RoHS RoHS Compliant
Capacitance 100 uF
Voltage Rating 25 V
ESR 0.09 Ohms
Case Code - in 2824
Case Code - mm 7260
Height 3.5 mm
Mfr Case Code R Case
Operating Temperature Range - 55 C to + 85 C
Series 594D
Product Tantalum Solid Low ESR Standard Grade
Packaging Reel
Dimensions 6 mm W x 7.2 mm L
Dissipation Factor DF 8
Leakage Current 25 uA
Package / Case 2824 (7260 metric)
Ripple Current 1.67 A
Factory Pack Quantity 600
Termination Style SMD/SMT
Polarity Polar
Product Length 7.2(Max)
EU RoHS Compliant
Maximum Operating Temperature 125
Leakage Current 25
Equivalent Series Resistance Type Low
Product Depth 6
Mounting Surface Mount
Product Height 3.5
Case Code R
Dissipation Factor 8
Equivalent Series Resistance 0.09
Unit Pack 600
MOQ 600
rohs Lead free / RoHS Compliant
Case Length 7.2 mm
Tradename TANTAMOUNT
Case Width 6 mm
Product Range :VISHAY SPRAGUE - 594D Series
Capacitance Tolerance :± 20%
Capacitor Case Style :2824 [7260 Metric]
Manufacturer Size Code :R
Operating Temperature Max :85°C
Operating Temperature Min :-55°C
MSL :MSL 2A - 4 weeks
Capacitor Mounting :SMD
Capacitor Terminals :SMD
No. of Pins :2
Weight (kg) 0.001
Tariff No. 85322300
CaseCode R
Material,Element Tantalum
Termination SMT
Voltage,Rating 25VDC
