595D105X9035A2T

Cap Tant Solid 1uF 35V A CASE 10% (3.7 X 1.8 X 1.4mm) SMD 4.1 Ohm 125°C T/R

Thumbnail 595D105X9035A2T Thumbnail 595D105X9035A2T Thumbnail 595D105X9035A2T Thumbnail 595D105X9035A2T Thumbnail 595D105X9035A2T Thumbnail 595D105X9035A2T
廠商型號: 595D105X9035A2T
芯天下內部編號: 5-595D105X9035A2T
生產廠商:
vishay / sprague vishay / sprague
描述: Cap Tant Solid 1uF 35V A CASE 10% (3.7 X 1.8 X 1.4mm) SMD 4.1 Ohm 125°C T/R
產品類別: Capacitor|Capacitor Tantalum Solid SMT
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

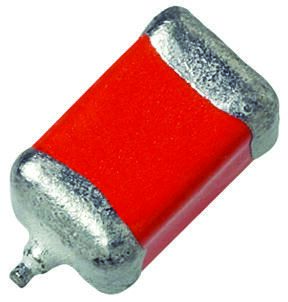

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package/Case A
Capacitance Value 1 uF
Voltage 35 Vdc
Tolerance 10 %
Case Style Conformal Coated
Equivalent Series Resistance 4.1 Ohm
Product Length 3.7(Max) mm
Product Height 1.4 mm
Product Depth 1.8 mm
Maximum Operating Temperature 125 °C
Construction Flat
Minimum Operating Temperature -55 °C
Operating Temperature -55 to 125 °C
Standard Package Tape & Reel
Product Category Tantalum Capacitors - Solid SMD
RoHS RoHS Compliant
Capacitance 1 uF
Voltage Rating 35 V
ESR 4.1 Ohms
Case Code - in 1407
Case Code - mm 3718
Height 2.2 mm
Mfr Case Code A Case
Operating Temperature Range - 55 C to + 85 C
Series 595D
Product Tantalum Solid Standard Grade - Other Various
Packaging Reel
Dimensions 1.8 mm W x 3.7 mm L
Dissipation Factor DF 4
Leakage Current 4 uA
Package / Case 1407 (3718 metric)
Ripple Current 13 mA
Factory Pack Quantity 2000
Termination Style SMD/SMT
Polarity Polar
Product Length 3.7(Max)
EU RoHS Compliant
Maximum Operating Temperature 125
Leakage Current 0.5
Equivalent Series Resistance Type Standard
Product Depth 1.8
Mounting Surface Mount
Product Height 1.4
Case Code A
Dissipation Factor 4
Equivalent Series Resistance 4.1
Unit Pack 2000
MOQ 2000
rohs Lead free / RoHS Compliant
Case Length 3.7 mm
Tradename TANTAMOUNT
Case Width 1.8 mm
Product Range :VISHAY SPRAGUE - 595D Series
Capacitance Tolerance :± 10%
Capacitor Case Style :1507 [3718-17 Metric]
Manufacturer Size Code :A
Operating Temperature Max :125°C
Operating Temperature Min :-55°C
MSL :MSL 2A - 4 weeks
Capacitor Mounting :SMD
Capacitor Terminals :SMD
External Depth :1.4mm
External Length / Height :3.5mm
External Width :1.8mm
No. of Pins :2
Reel Quantity :2000
Terminal Type :Surface Mount (SMD, SMT)
Tolerance + :10%
Tolerance - :10%
Voltage Rating V DC :35V
Weight (kg) 0.00002
Tariff No. 85322100

相似產品

型號 廠商 描述 操作
595D105X9035A4T vishay / sprague Cap Tant Solid 1uF 35V A CASE 10% (3.7 X 1.8 X 1.4mm) SMD T/R 查看詳情
595D105X0010A2T vishay / sprague Cap Tant Solid 1uF 10V A CASE 20% (3.7 X 1.8 X 1.4mm) SMD 125°C T/R 查看詳情
595D105X0016T2T vishay / sprague Cap Tant Solid 1uF 16V T CASE 20% (2.2 X 1.1 X 1.1mm) SMD T/R 查看詳情
595D105X0020T2T vishay / sprague Cap Tant Solid 1uF 20V T CASE 20% (2.2 X 1.1 X 1.1mm) SMD 9 Ohm 125°C T/R 查看詳情
595D105X0020T4T vishay / sprague Cap Tant Solid 1uF 20V T CASE 20% (2.2 X 1.1 X 1.1mm) SMD 9 Ohm 125°C T/R 查看詳情
595D105X0020T8T vishay / sprague Cap Tant Solid 1uF 20V T CASE 20% (2.2 X 1.1 X 1.1mm) SMD 9 Ohm 125°C T/R 查看詳情
595D105X0025A2T vishay / sprague Cap Tant Solid 1uF 25V A CASE 20% (3.7 X 1.8 X 1.4mm) SMD 4.2 Ohm 125°C T/R 查看詳情
595D105X0035A2T vishay / sprague Cap Tant Solid 1uF 35V A CASE 20% (3.7 X 1.8 X 1.4mm) SMD 4.1 Ohm 125°C T/R 查看詳情
595D105X0035A4T vishay / sprague Cap Tant Solid 1uF 35V A CASE 20% (3.7 X 1.8 X 1.4mm) SMD 4.1 Ohm 125°C T/R 查看詳情
595D105X0035A8T Vishay Sprague CAP TANT 1UF 35V 20% 1507 查看詳情
595D105X0050B2T vishay / sprague Cap Tant Solid 1uF 50V B CASE 20% (4 X 2.8 X 1.9mm) SMD 5 Ohm 125°C T/R 查看詳情
595D105X0050B8T vishay / sprague Cap Tant Solid 1uF 50V B CASE 20% (4 X 2.8 X 1.9mm) SMD 5 Ohm 125°C T/R 查看詳情
595D105X9020T2T vishay / sprague Cap Tant Solid 1uF 20V T CASE 10% (2.2 X 1.1 X 1.1mm) SMD T/R 查看詳情
595D105X9020T2W vishay / sprague Cap Tant Solid 1uF 20V T CASE 10% (2.2 X 1.1 X 1.1mm) SMD T/R 查看詳情
595D105X9020T4T vishay / sprague Cap Tant Solid 1uF 20V T CASE 10% (2.2 X 1.1 X 1.1mm) SMD T/R 查看詳情
595D105X9020T8T vishay / sprague Cap Tant Solid 1uF 20V T CASE 10% (2.2 X 1.1 X 1.1mm) SMD T/R 查看詳情
595D105X9025A2T vishay / sprague Cap Tant Solid 1uF 25V A CASE 10% (3.7 X 1.8 X 1.4mm) SMD 4.2 Ohm 125°C T/R 查看詳情
595D105X9025A4T vishay / sprague Cap Tant Solid 1uF 25V A CASE 10% (3.7 X 1.8 X 1.4mm) SMD 4.2 Ohm 125°C T/R 查看詳情
595D105X9025A8T vishay / sprague Cap Tant Solid 1uF 25V A CASE 10% (3.7 X 1.8 X 1.4mm) SMD 4.2 Ohm 125°C T/R 查看詳情
595D105X9050A2T Vishay Sprague CAP TANT 1UF 50V 10% 1507 查看詳情
