60151-6
Contact SKT Crimp ST Cable Mount Strip on Reel
廠商型號:
60151-6
芯天下內部編號:
35-60151-6
生產廠商:
te connectivity / amp
描述:
Contact SKT Crimp ST Cable Mount Strip on Reel
產品類別:
Interconnect|Connector Contacts

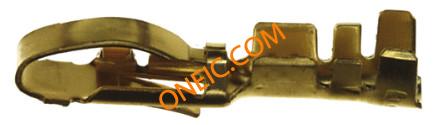

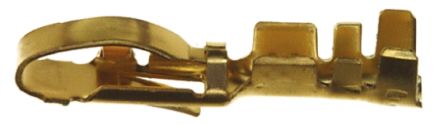

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Connector Type | Connector Card Edge |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Over Nickel |
| Gender | SKT |
| Termination Method | Crimp |
| Standard Package | Tape & Reel |
| Contact Packaging Method | Strip Form |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Terminate To | Wire |
| Solder Tail Contact Plating | Gold Flash |
| Contact Retention in Housing | Crimp Snap-In |
| Contact Underplating | Nickel (50) |
| Wire Termination Type | Crimp |
| Wire Insulation Diameter (mm in) | 2.74 [0.108] |
| Wire Range (mm (AWG)) | 1.25-1.40?2 [16] |
| Contact Mating Area Plating Material | Gold (30) |
| Product Type | Contact |
| RoHSELV Compliance History | Always was RoHS compliant |
| Double Wire Insulation Diameter (mm in) | 2.03 a?? 4.06 [0.080 a?? 0.160] |
| Wire Gauge | 16 AWG |
| Contact Finish | Gold |
| Packaging | Tape & Reel (TR) |
| Pin or Socket | Non-Gendered |
| Contact Finish Thickness | 30μin (0.76μm) |
| Contact Termination | Crimp |
| rohs | Lead free / RoHS Compliant |
| Other Names | A104033CT |
| Accessory Type | Contact |
| For Use With | Automotive Connector |
| Factory Pack Quantity | 4000 |
| Product Category | Standard Card Edge Connectors |
| Series | 60151 |
| RoHS | RoHS Compliant |
| Standard Pack: | 4,000 |
| 附件類型 | 觸點 |
| 使用于 | 汽車連接器 |
| 二重線絶縁直徑 | 2.03 – 4.06?mm?[?.08 – .16?in?] |
| 端子接觸部電鍍厚度?(μin) | 30 |
| 端子類型 | 插座 |
| 焊尾端子電鍍材料 | 鍍金 |
| 絶縁サポート付き | 是 |
| 下地の材料 | 鎳 |
| 連接器和端子端接到 | 電線和電纜 |
| ハウジングによる端子保持 | 壓接扣入式 |
| 線纜尺寸?(AWG) | 16 |
| 封裝數量 | 4000 |
| 端子接觸部電鍍材料 | 金 |
| 封裝方法 | 剝線 |
| 絕緣電阻?(MΩ) | 5000 |
| 端子基材 | 磷青銅 |
| 絕緣直徑 | 2.74?mm?[?.108?in?] |
| 壓接區域電鍍材料 | 鍍金 |
| 線纜尺寸?(mm2) | 1.25 – 1.4 |
| 產品類型 | 接觸件 |
| 工組溫度范圍?(°C) | -40 – 85 |
| Contact Current Rating (Max)?(A) | 5 |
| 線纜端接方法 | 壓接 |
