65800001009
Fuse Holders 5X2 OMM SMD FUSE BLOCK
廠商型號:
65800001009
芯天下內部編號:
206-65800001009
生產廠商:
Littelfuse
描述:
Fuse Holders 5X2 OMM SMD FUSE BLOCK
產品類別:
Circuit Protection|Fuses & Fuse Holders|Fuse Holders

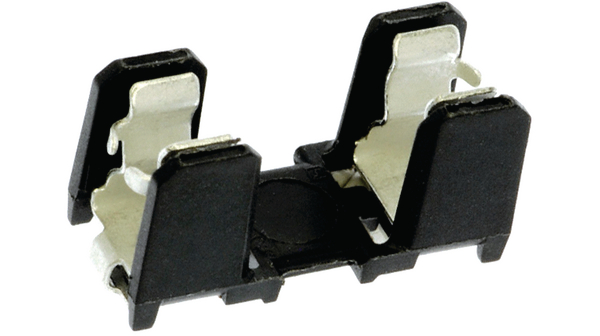

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Fuse Holders |
| RoHS | RoHS Compliant |
| Product | Fuse Holders |
| Current Rating | 10 A |
| Voltage Rating | 250 V |
| Number of Poles | 1 |
| Series | 658 |
| Mounting Style | SMD/SMT |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Black |
| Illumination | No |
| Packaging | Bulk |
| Factory Pack Quantity | 100 |
| Product Length | 22.7 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Depth | 9.6 |
| Product Height | 13.2 |
| Minimum Operating Temperature | -40 |
| Type | Fuse Holder |
| Automotive | NO |
| Matchcode | FUH5X20BLOCK |
| Approvals | UL |
| Current rating | 10A |
| Voltage rating | 250V |
| Unit Pack | 100 |
| Standard Leadtime | 14 weeks |
| MOQ | 100 |
| Touchprotection | NoY/N |
| Height | 13.2mm |
| Width | 9.6mm |
| Length | 22.7mm |
| Cap P/N | 659/660 |
| Fuse Version | 5x20 |
| Cont.material | Tin |
| Termination | SMT |
| Mounting | PCB |
| Leadfree Defin. | RoHS-conform |
| Voltage | 250V |
| Mounting Type | Surface Mount |
| Fuseholder Type | Block |
| Fuse Size | 5mm x 20mm |
| Termination Style | SMD (SMT) Tab |
| Contact Finish | Tin |
| Fuse Type | Cartridge |
| For Use With/Related Products | 5mm x 20mm |
| Standard Package | 100 |
| Number of Circuits | 1 |
| Contact Material | Copper Alloy |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating VDC | :250V |
| Voltage Rating VAC | :250V |
| Fuse Current | :10A |
| Fuse Holder Type | :Cartridge Fuse Holder |
| Holder Terminals | :Solder Lug |
| No. of Fuses | :1 |
| Fuse Size Held | :5mm x 20mm |
| Weight (kg) | 0 |
| Tariff No. | 85361010 |
