6637S-1-103
Res POT 10K Ohm 10% 1W 1(Elec)/1(Mech)Turn 3.17mm (22.23 X 33.66mm) Turret Panel Mount
廠商型號:
6637S-1-103
芯天下內部編號:
18-6637S-1-103
生產廠商:
bourns
描述:
Res POT 10K Ohm 10% 1W 1(Elec)/1(Mech)Turn 3.17mm (22.23 X 33.66mm) Turret Panel Mount
產品類別:
Resistor|Resistor Trimmers, Potentiometer and Rheostat

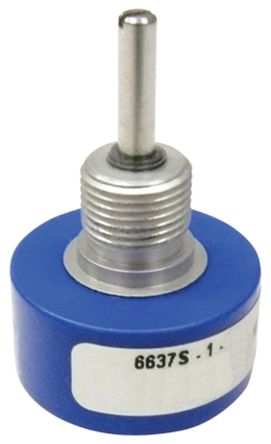

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Potentiometer |
| Resistance Value | 10 KOhm |
| Tolerance | 10 % |
| Number of Turns | 1(Elec)|1(Mech) Turns |
| Power Rating | 1 W |
| Mounting | Panel Mount |
| Operating Temperature | 1 to 125 °C |
| Shaft Diameter | 3.17 mm |
| Standard Package | Bulk |
| Product Category | Precision Potentiometers |
| RoHS | RoHS Compliant By Exemption |
| Product | Precision Potentiometer |
| Mounting Style | Panel |
| Shaft Type | Slotted |
| Resistance | 10 kOhms |
| Termination Style | Turret |
| Series | 6637 |
| Shaft Length | 22.23 mm |
| Factory Pack Quantity | 5 |
| Resistance Value | 10K |
| EU RoHS | Compliant |
| Product Diameter | 22.23 |
| Shaft Diameter | 3.17 |
| Temperature Coefficient | ±500 |
| Product Length | 33.66 |
| Power Rating | 1 |
| Number of Turns | 1(Elec)|1(Mech) |
| Resistance (Ohms) | 10k |
| Actuator Length | 0.875" (22.23mm) |
| Mounting Type | Panel Mount |
| Temperature Coefficient | ±500ppm/°C |
| Size - Body | Round - 0.875" Dia x 0.443" L (22.23mm x 11.25mm) |
| Packaging | Tray |
| Resistive Material | Conductive Plastic |
| Power (Watts) | 1W |
| Actuator Diameter | 0.125" (3.17mm) |
| Adjustment Type | Top Adjustment |
| Actuator Type | Slotted Shaft |
| Rotation | Continuous |
| Other Names | 6637S1103 |
| rohs | Lead free / RoHS Compliant |
| Diameter,Shaft | 0.1248" |
| Linearity | ±1% |
| MountingType | Panel |
| NumberofTurns | 1 |
| Power,Rating | 1W |
| Resistance,Tolerance | ±10% |
| Taper | Linear |
| Thread length | 9.53mm |
| Shaft diameter | 3.17mm |
| Power | 1W |
| Potentiometer type | shaft |
| Shaft surface | smooth |
| Multiplicity | 1 |
| Mechanical durability | 10Mcycles |
| Track material | plastic |
| Potentiometer kind | single turn |
| Gross weight | 1 g |
| Linearity tolerance | ±1% |
| Electrical rotation angle | 340° |
| Characteristics | linear |
| Shaft length | 12.7mm |
| Fastening thread | 3/8"x32UNEF |
| Collective package [pcs] | 5 |
| spg | 5 |
| 調節類型 | Top Adjustment |
| 系列 | 6637 |
| 端接樣式 | Solder Turret |
| 容差 | ±10% |
| 電阻 (Ω) | 10k |
| 電阻材料 | Conductive Plastic |
| 圈數 | Single |
| 旋轉 | Continuous |
| 溫度系數 | ±500ppm/°C |
| 致動器直徑 | 0.125" (3.17mm) |
| 尺寸 - 本體 | Round - 0.875" Dia x 0.443" L (22.23mm x 11.25mm) |
| 致動器類型 | Slotted Shaft |
| 功率 (W) | 1W |
| 致動器長度 | 0.875" (22.23mm) |
| 軸直徑 | 3.17 mm |
| 最高工作溫度 | +125°C |
| 電氣錐形 | 精密 |
| 額定功率 | 1W |
| 安裝類型 | 襯套安裝 |
| 電位器類型 | 精密 |
| 接端樣式 | 焊接轉塔 |
| 尺寸 | 22.23 (Dia.) x 33.48mm |
| 最低工作溫度 | -40°C |
| 轉數 | 1 |
| 長度 | 33.48mm |
| Board Level Components | Y |
| 直徑 | 22.23mm |
| 安裝孔直徑 | 10.44mm |
| 最大電阻 | 10kΩ |
