7-215083-4

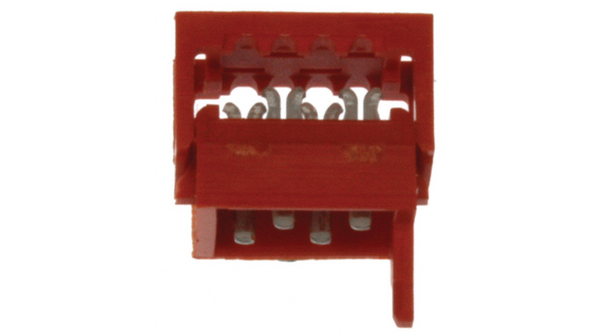

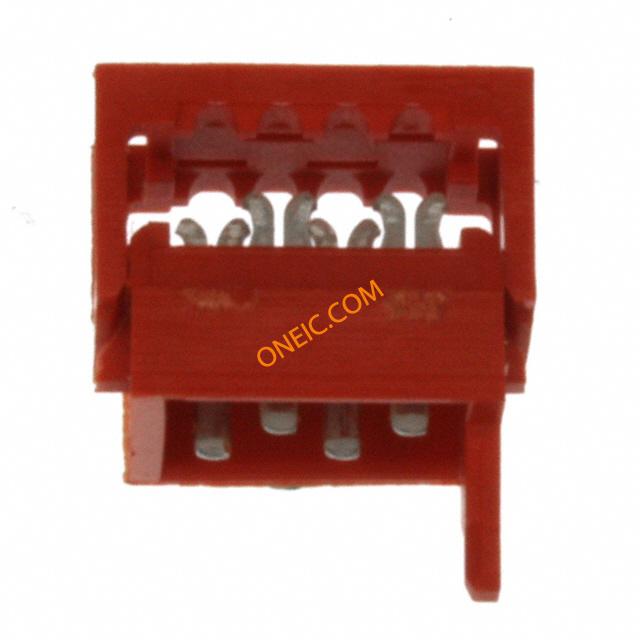

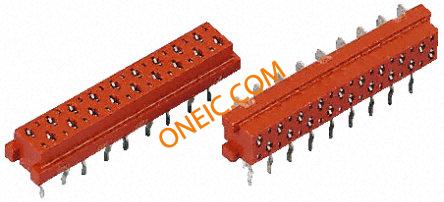

Conn IDC Connector M 4 POS 2.54mm IDT RA Cable Mount Box
廠商型號:
7-215083-4
芯天下內部編號:
35-7-215083-4
生產廠商:
te connectivity / amp
描述:
Conn IDC Connector M 4 POS 2.54mm IDT RA Cable Mount Box
產品類別:
Interconnect|Connector Headers and PCB Receptacles
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | IDC Connector |
| Pitch | 2.54 mm |
| Number of Rows | 2 |
| Number of Contacts | 4 |
| Gender | M |
| Contact Plating | Tin Over Nickel |
| Termination Method | IDT |
| Standard Package | Tape & Reel |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Housing Material | Polyester GF |
| Lead Free Solder Processes | Not relevant for lead free process |
| Centerline (mm (in)) | 1.27 [0.050] |
| RoHSELV Compliance History | Always was RoHS compliant |
| Packaging Method | Box |
| Connector Type | Male-On-Wire |
| Packaging Quantity | 250 |
| Insulation Diameter (mm in) | 0.90 [.035] |
| Polarization | Without |
| Housing Color | Red |
| Wire Range (mm (AWG)) | 0.08-0.09?2 [28] |
| Contact Mating Area Plating Material | Tin over Nickel |
| Product Type | Connector |
| Terminate To | Ribbon Cable |
| Number of Positions | 4 |
| Contact Material | Phosphor Bronze |
| Wire Type | Ribbon Cable |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Cable Termination | IDC |
| Contact Finish | Tin |
| Packaging | Tape & Reel (TR) |
| Wire Gauge | 28 AWG |
| Contact Type | Male Pin |
| Row Spacing | 0.059" (1.50mm) |
| Color | Red |
| rohs | Lead free / RoHS Compliant |
| Other Names | A99464CT |
| Body Orientation | Straight |
| Current Rating | 1.5A |
| Series | Micro-Match |
| Voltage Rating | 230 V |
| Factory Pack Quantity | 25 |
| Termination Style | IDC |
| Product Category | Headers & Wire Housings |
| Number of Positions / Contacts | 4 |
| Contact Gender | Pin (Male) |
| Latching Type | Unlatched |
| RoHS | RoHS Compliant |
| Mounting Angle | Right |
| Operating Temp Range | -40C to 105C |
| Contact Resistance Max | 10 mohm |
| Current Rating (Max) | 1.5/Contact A |
| Mounting Style | Cable |
| Number of Contact Rows | 2 |
| Product Length (mm) | 8.6 mm |
| Product Depth (mm) | 5.1 mm |
| Product Height (mm) | 10.2 mm |
| Voltage Rating Max | 230VAC |
| Pitch (mm) | 2.54 mm |
| Electrical mounting | IDC |
| Mechanical mounting | for ribbon cable |
| C dimension | 3.81mm |
| Dimensions | see |
| Connectors features | anti-vibration system |
| Rated current | 1.5A |
| Connector type | male |
| A dimension | 8.6mm |
| Type of pin configuration | 2x2 |
| Connector | plug |
| Number of pins | 4 |
| B dimension | 5.4mm |
| Ribbon cable pitch | 1.27mm |
| Multiplicity | 1 |
| Gross weight | 0.46 g |
| Collective package [pcs] | 2500 |
| spg | 2500 |
| 連接器類型 | Plug |
| 間距 | 0.100" (2.54mm) |
| 排數 | 2 |
| 位置數 | 4 |
| 排距 | 0.059" (1.50mm) |
| 電纜端接 | IDC |
| 特性 | Feed Through |
| 觸頭鍍層 | Tin |
| 裝配類型 | Free Hanging (In-Line) |
| 接觸點類型 | Male Pin |
| 線規 | 28 AWG |
| 電線類型 | Ribbon Cable |
| 系列 | Micro-MaTch, AMP |
| A | 8.6 |
| C | 3.81 |
| B | 5.4 |
| Rated voltage | 100 |
| Poles | 4 |
| Ribbon cable connection | AWG 28 (0.09 mm2), grid 1.27 mm |
| Temperature range | -40...+105 °C |
| Contact material | CuSn |
| Combustibility class | UL 94 V-0 |
| Gender of contacts | Male |
| 觸點數目 | 4 |
| 主體向性 | 直角 |
| 最高工作溫度 | +105°C |
| 安裝類型 | 電纜安裝 |
| 最低工作溫度 | -40°C |
| 端接方法 | IDC |
| 額定電流 | 1.5A |
| 外殼材料 | PET |
| 觸點材料 | 磷銅 |
| 行數 | 2 |
| 節距 | 1.27mm |
| 觸點電鍍 | 錫鍍鎳 |
| 額定電壓 | 230 V 交流 |
| Centerline (Pitch) | 1.27?mm?[?.05?in?] |
| Vacuum Tape | Without |
| 端子類型 | 插針 |
| 封裝方法 | 盒和紙箱 |
| 板支座 | 不帶 |
| 端子基材 | 磷青銅 |
| 接合對準類型 | 極化 |
| Contact Current Rating (Max)?(A) | 1.5 |
| UL 易燃性等級 | UL 94V-0 |
| 線纜端接方法 | 刺破式壓接 (IDC) |
| 殼體顏色 | 紅色 |
| 外形 | 低 |
| Connector System | 線到板 |
| 接合對準 | 不帶 |
| 端子端接區域電鍍材料 | 鎳打底鍍錫 |
| 高度 | 6.8?mm?[?.27?in?] |
| 端子接觸部電鍍材料 | 鎳打底鍍錫 |
| PCB Mount Alignment | Without |
| 接合固定 | 不帶 |
| Header Type | Pin Header |
| 產品類型 | 連接器 |
| PCB 安裝固定 | 不帶 |
| 面板安裝固定 | 不帶 |
| 絕緣電阻?(MΩ) | 1000 |
| 線纜尺寸 | .08 – .09 mm2, 28 美國線規 |
| 絕緣直徑 | .9?mm?[?.035?in?] |
| 接受電線絕緣直徑范圍 | .1 – .9?mm?[?.003 – .035?in?] |
| PCB 安裝方向 | 垂直 |
| 焊尾端子電鍍材料 | 鎳打底鍍錫 |
| 彈射插銷 | 不帶 |
| 端子傳導（典型值） | 信號（數據） |
| 端子設計 | 雙梁 |
| 線纜類型 | 帶狀電纜 |
| 連接器種類 | 插頭 |
| Shrouded | Yes |
| 封裝數量 | 250 |
| 長度?(mm) | 8.6 |
| 連接器和端子端接到 | 電線和電纜 |
| 工作電壓?(VDC) | 100 |
| 工組溫度范圍?(°C) | -40 – 105 |
| Daisy Chain | Without |
