70-IAC5
OptoCoupler Transistor-Out 1-CH 5-Pin
廠商型號:
70-IAC5
芯天下內部編號:
153-70-IAC5
生產廠商:
grayhill
描述:
OptoCoupler Transistor-Out 1-CH 5-Pin
產品類別:
Switches and Relays|Relays|Solid State Relay

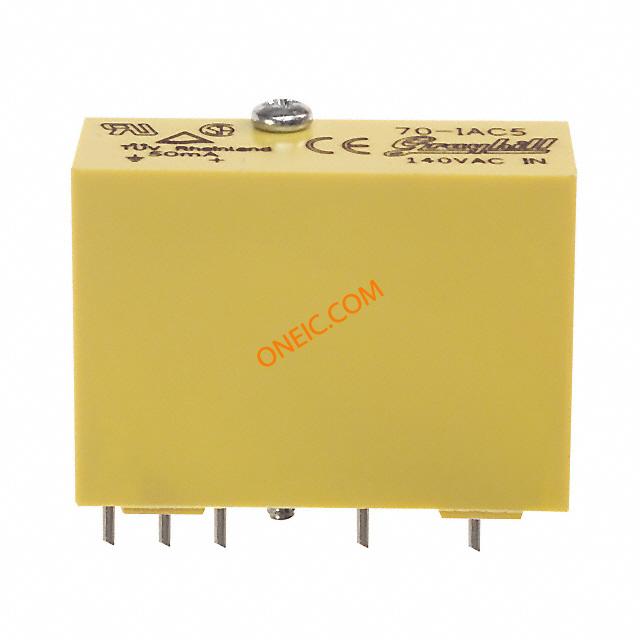

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Screw |
| Standard Package | Bulk |
| Maximum Load Current | 50mA |
| EU RoHS | RoHS Not Applicable |
| Maximum Operating Temperature | 100 |
| Module Type | Input Module |
| Terminal Type | PC Pins |
| Typical Input Voltage | 120VAC |
| Agency Approvals | CE/CSA/TUV/UL |
| Input Type | AC |
| I/O Isolation Voltage | 4000Vrms |
| Minimum Operating Temperature | -40 |
| Minimum Input Voltage | 90VAC |
| Maximum Input Current | 8mA |
| Maximum Input Voltage | 140VAC |
| Technology | Solid State |
| Subcategory | I/O Module |
| Series | 70 |
| Lead Time | 21 Days |
| Style | Standard |
| Logic Supply Current (Output) | 10mA |
| Color | Yellow |
| Logic Supply Voltage (Output) | 5VDC (3 ~ 6VDC) |
| Current - Input | 8mA |
| Voltage - Input | 90 ~ 140VAC (120VAC Nom) |
| Turn On Time | 20ms |
| Turn Off Time | 20ms |
| Type | AC |
| Features | Hold Down Screw |
| rohs | Contains lead / RoHS non-compliant |
| ConnectiontoHost | BoardMount |
| Current,Input | 10mA |
| Input | 90to140VAC |
| InputType | Analog |
| Input,Range | 90to140VAC |
| ModuleType | Input |
| NumberofChannels | 1 |
| PrimaryType | Control |
| Resistance,Input | 22Kiloohms(Nom.) |
| SpecialFeatures | OpticalIsolation |
| Standards | UL,CSA,CE,TUVCertified |
| Temperature,Operating | -40to+100°C |
| Time,Turn-Off | 20ms |
| Time,Turn-On | 20ms |
| Voltage,Isolation | 4000VAC |
| Voltage,Operating | 120 |
| Voltage,Supply | 5VDC |
| 系列 | 70 |
| 樣式 | Standard |
| 接通時間 | 20ms |
| 特性 | Hold Down Screw |
| 邏輯電源電流（輸出） | 10mA |
| 電壓 - 輸入 | 90 ~ 140VAC (120VAC Nom) |
| 關斷時間 | 20ms |
| 類型 | AC |
| 顏色 | Yellow |
| 電流 - 輸入 | 8mA |
| 邏輯電源電壓（輸出） | 5VDC (3 ~ 6VDC) |
