7101-24-1010
Reed Relays REED RELAY DIP SPST 24V

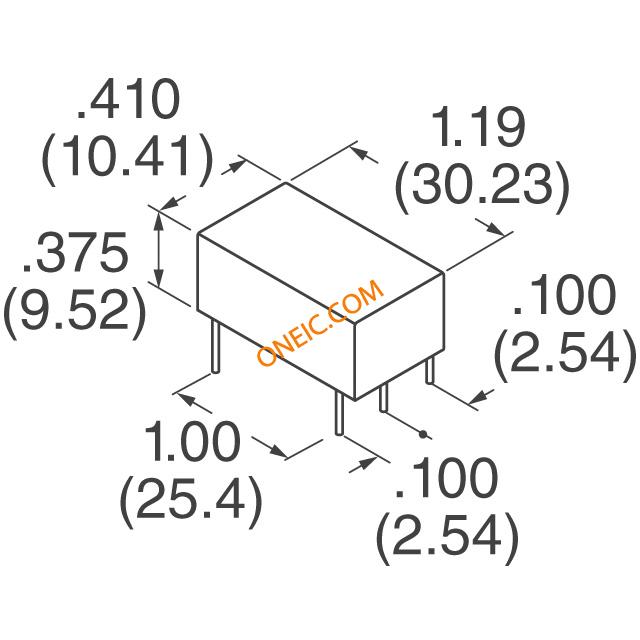

,1110-Series.jpg)
廠商型號:
7101-24-1010
芯天下內部編號:
81-7101-24-1010
生產廠商:
Coto Technology
描述:
Reed Relays REED RELAY DIP SPST 24V
產品類別:
Electromechanical|Relays|Reed Relays
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Contact Form | 1 Form A (SPST-NO) |
| Coil Voltage | 24 V |
| Maximum Switched Current | 0.5 A |
| Coil Suppression Diode | No |
| Coil Resistance | 4200 Ohms |
| Contact Material | Ruthenium |
| Form Factor, or Case Style | Potted |
| Series | 7000 |
| Factory Pack Quantity | 41 |
| Coil Current | 5.7mA |
| Turn On Voltage (Max) | 18 VDC |
| Features | Electrostatic Shield |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 2 VDC |
| Relay Type | Reed |
| Termination Style | PC Pin |
| Switching Voltage | 200VAC, 200VDC - Max |
| Release Time | 0.1ms |
| Packaging | Bulk |
| Operating Temperature | -20°C ~ 85°C |
| Operate Time | 1ms |
| Contact Rating (Current) | 500mA |
| Standard Package | 1 |
| Mounting Type | Through Hole |
| rohs | Lead free / RoHS Compliant |
| SubCategory | Reed Relay |
| Mounting | PC Board |
| Switching Current | 0.5 Amps |
| Control Off Voltage (Min) | 2 VDC |
| Contact Configuration | 1A SPST-NO |
| MainCategory | Relays |
| Contact Rating @ Voltage | 0.5A @ 200 VAC/DC |
| Control On Voltage (Max) | 18 VDC |
