735278-1
PIDG Quick Disconnect Terminal 15.5-17AWG RCP 21.6mm 9.3mm Tin Loose Piece
廠商型號:
735278-1
芯天下內部編號:
35-735278-1
生產廠商:
te connectivity / amp
描述:

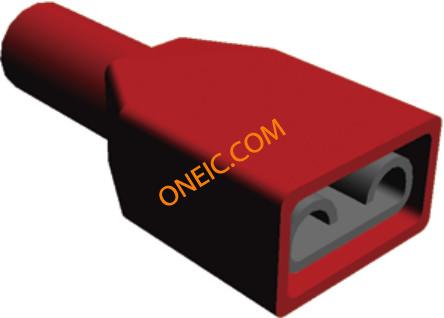

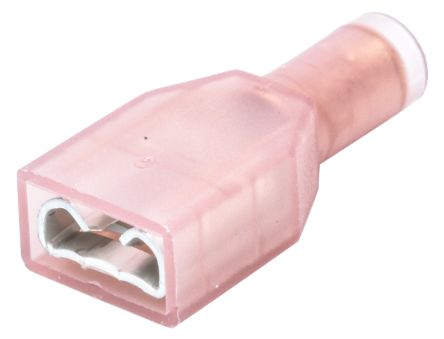

PIDG Quick Disconnect Terminal 15.5-17AWG RCP 21.6mm 9.3mm Tin Loose Piece
產品類別:
Interconnect|Connector Terminals
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Product | Faston Terminals |
| Factory Pack Quantity | 100 |
| Comment | CERTI-CRIMP Hand Tool P/N 90035-3 is for Wire Range [0.3 - 1.0]mm?2CERTI-CRIMP |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Finish | Tin |
| Color | Red |
| Voltage (VAC) | 300 |
| Material | Phosphor Bronze |
| Packaging Method | Loose Piece |
| Packaging Quantity | 100 |
| Proprietary Name | PIDG FASTON |
| Insulation Diameter (mm in) | 3.30 [.129] Max. |
| Fully Insulated | Yes |
| Insertion Force | Normal |
| Insulation Sleeve Material | Nylon |
| Wire Range (mm (AWG)) | 1.00-1.50?2 [17-15.5] |
| Insulation Support | Insulation Support |
| Receptacle Style | Straight |
| RoHSELV Compliance History | Always was RoHS compliant |
| Tab Fit (mm in) | 6.35 x 0.81 [.250 x .032] |
| Dimple Type | Dimple without wire stop |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 15.5-17 AWG |
| Gender | Female |
| Length - Overall | 0.850" (21.59mm) |
| Contact Finish | Tin |
| Packaging | Bulk |
| Insulation Diameter | 0.130" (3.30mm) |
| Standard Package | 3,000 |
| Insulation | Fully Insulated |
| Termination | Crimp |
| Contact Material | Phosphor Bronze |
| Terminal Type | Standard |
| rohs | Lead free / RoHS Compliant |
| Connector Type | Quick Disconnect Terminal |
| Contact Plating | Tin |
| Length | 21.6mm |
| Series | .187 |
| Wire Size | 17 → 15 AWG |
| Standard Pack: | 100 |
| 連接器類型 | 快速斷開終端, 母座 |
| 系列 | PIDG FASTON .250 |
| 絕緣材料 | 尼龍 |
| 最大電線尺寸 AWG | 15AWG |
| 絕緣 | 絕緣 |
| 觸點材料 | 磷銅 |
| 長度 | 21.6mm |
| 最小電線尺寸 AWG | 17AWG |
| 最大電線尺寸 mm2 | 1.5mm2 |
| 觸點電鍍 | 錫 |
| 顏色 | 紅色 |
| 接片尺寸 | 6.35 x 0.81mm |
| 最小電線尺寸 mm2 | 1mm2 |
| Wire/Cable Composition | Stranded |
| Wire Size?(AWG) | 17 – 15 |
| 總長 | 21.6?mm?[?.85?in?] |
| 封裝方法 | 袋 |
| FASTON | Yes |
| Insulated | Yes |
| Wire Stop | No |
| Insulated Wire Support | Yes |
| Wire Size?(mm2) | 1 – 1.5 |
| 電壓（最大值）?(V) | 300 |
| 電鍍材料 | 錫 |
| Barrel Color | Red |
| 斷開類型 | 快速斷開插針 |
| 線纜類型 | 分離式導線 |
| 公端寬度 | 6.35?mm?[?.25?in?] |
| 接合固定類型 | 凹點 |
| 端子方向 | 直式 |
| 插入力 | 普通 |
| 電線絕緣直徑（最大值） | 3.3?mm?[?.13?in?] |
| 壓接類型 | F-Crimp |
| 封裝數量 | 100 |
| 注釋 | CERTI-CRIMP 手動工具料號 90035-3 適用于線徑范圍 [.3 - 1.0]mm2，CERTI-CRIMP 手動工具料號 47386-4 適用于線徑范圍 [1.0 - 1.5]mm2, 完全絕緣 |
| 公端厚度 | .81?mm?[?.032?in?] |
| 完全絕緣 | 是 |
| Terminates To | Wire & Cable |
