7488940245
Antennas WE-MCA Chip 2400-2500MHz 50ohm
廠商型號:
7488940245
芯天下內部編號:
482-7488940245
生產廠商:
Wurth Electronics
描述:
Antennas WE-MCA Chip 2400-2500MHz 50ohm
產品類別:
Computing & Peripherals|Wireless Components & Modules|SMT Antennas

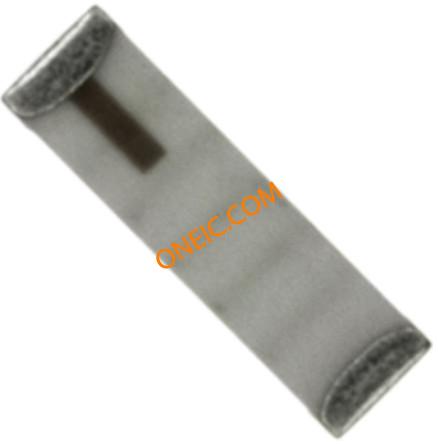

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Number of Bands | 1 |
| Height (Max) | 0.04" (1.2mm) |
| Antenna Type | Chip |
| Termination | Surface Mount |
| Packaging | Tape & Reel (TR) |
| Frequency | 2.4GHz ~ 2.5GHz |
| Gain | 0.5dBi |
| Standard Package | 1,000 |
| Mounting Type | Surface Mount |
| VSWR | 2 |
| Other Names | 732-1845-2 |
| rohs | Lead free / RoHS Compliant |
| Internal/External | Internal |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Supported Frequency Bands | 2400 → 2500 MHz |
| Factory Pack Quantity | 1000 |
| Product Category | Antennas |
| Dimensions | 7 mm L x 2 mm W x 1.2 mm H |
| Series | WE-MCA |
| Termination Style | SMD/SMT |
| Height | 1.2 mm |
| Width | 2 mm |
| Length | 7 mm |
| Impedance | 50 Ohms |
| Technology Type | Multilayer Chip Antenna |
| RoHS | RoHS Compliant |
| 支持的頻帶 | 2400 → 2500 MHz |
| 最高操作溫度 | +85°C |
| 內部/外部 | 內部 |
| 最低工作溫度 | -40°C |
