750310617
TRANS FLYBACK LT3748 4.5UH SMD
廠商型號:
750310617
芯天下內部編號:
482-750310617
生產廠商:
Wurth Electronics Inc
描述:
TRANS FLYBACK LT3748 4.5UH SMD
產品類別:
Transformers|Switching Converter, SMPS Transformers|WE-FB
客戶編號:
規格書:
查看PDF

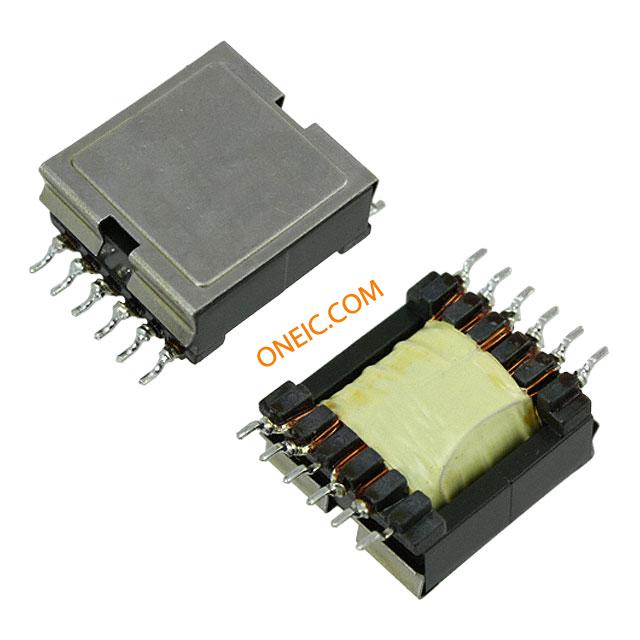

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Tape & Reel (TR) |
| Type | For DC/DC Converters |
| Voltage - Auxillary | 12V @ 20mA |
| Height - Seated (Max) | 11.43mm |
| Mounting Type | Surface Mount |
| Intended Chipset | LT3573, LT3574, LT3575, LT3748 |
| Voltage - Primary | 9 ~ 36V |
| Size / Dimension | 29.08mm L x 23.11mm W |
| Applications | Flyback Converters |
| Frequency | 200kHz |
| Chipset Manufacturer | Linear Technology |
| Standard Package | 125 |
| Voltage - Isolation | 1500Vrms |
| Other Names | 732-2649-2 |
| rohs | Lead free / RoHS Compliant |
| Inductance | :4.5μH |
| DC Resistance | :0.02ohm |
| Isolation Voltage | :1.5kV |
| SVHC | :No SVHC (20-Jun-2013) |
| Output Voltage | :12V |
| Weight (kg) | 0.01 |
| Tariff No. | 85043180 |
