750340-1
Conn Shielded Miniature Circular DIN F 8 POS Solder ST Thru-Hole 8 Terminal 1 Port
廠商型號:
750340-1
芯天下內部編號:
35-750340-1
生產廠商:
te connectivity / amp
描述:
Conn Shielded Miniature Circular DIN F 8 POS Solder ST Thru-Hole 8 Terminal 1 Port
產品類別:
Interconnect|Connector Circular

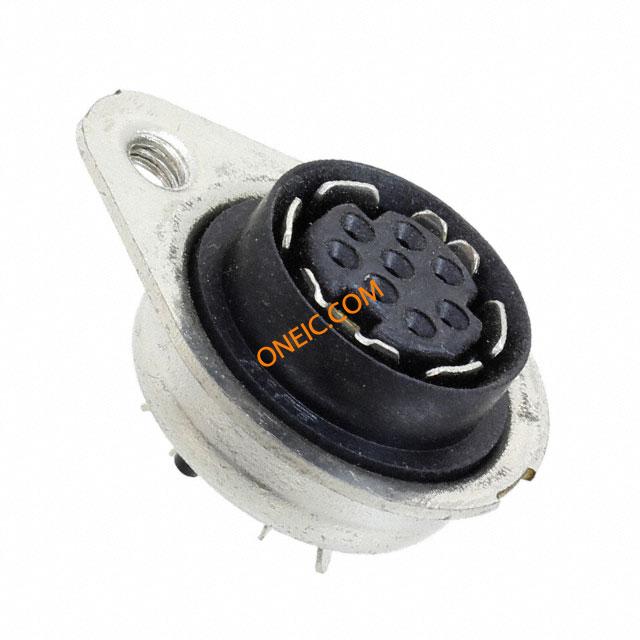

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Shielded Miniature Circular DIN |
| Gender | RCP |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Product Category | Circular DIN Connectors |
| RoHS | RoHS Compliant |
| Standard | Mini DIN |
| Product Type | Connectors |
| Contact Gender | Socket (Female) |
| Number of Contacts | 8 |
| Termination Style | Solder |
| Factory Pack Quantity | 360 |
| PCB Mount Angle | Vertical |
| Outer Shield Plating | Tin-lead over Copper |
| Housing Material | Thermoplastic |
| PCB Mount Style | Thru Hole |
| Number of Positions | 8 |
| RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Lead Free Solder Processes | Wave solder capable to 240?°C, Wave solder capable to 260?°C, Wave solder c |
| Color Code | None |
| SPDIF Connector | Without |
| Solder Tail Contact Plating | Tin-Lead |
| Housing Color | Black |
| Outer Shield Material | Copper Alloy |
| Stacked | No |
| Shielded | Yes |
| Front Panel Grounding | With |
| Contact Mating Area Plating Material | Gold (15) |
| Front Panel Screw-Down | With |
| Inner Shield Plating | Tin-lead over Nickel |
| Inner Shield Material | Copper Alloy |
| Contact Underplating | Nickel (50) |
| Grounding Clips | Without |
| PCB Retention Feature | No |
| Housing Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Selling Alternatives | 5749699-75750340-1 |
| Subcategory | Connector Circular |
| Lead Time | 70 Days |
| Standard Pack: | 360 |
| Orientation | Keyed |
| Mounting Type | Panel Mount, Flange; Through Hole |
| Termination | Solder |
| Shell Size - Insert | Mini DIN |
| Connector Type | Receptacle, Female Sockets |
| Shell Material, Finish | Brass |
| Contact Finish | Gold |
| Packaging | Bulk |
| Operating Temperature | -55°C ~ 105°C |
| Fastening Type | Push-Pull |
| Current Rating | 1A |
| Voltage - Rated | 30VDC |
| Contact Finish Thickness | 15μin (0.38μm) |
| Other Names | A117746 |
| Features | Board Lock, Shielded |
| rohs | Contains lead / RoHS non-compliant |
| 端子接觸部電鍍厚度?(μin) | 15 |
| 外屏蔽材料 | 銅合金 |
| 連接器種類 | 母端 |
| 焊尾端子電鍍材料 | 錫鉛 |
| 連接器類型 | 公端 |
| 前面板接地方法 | 法蘭 |
| PCB 安裝固定類型 | 扭結支腳 |
| 封裝方法 | 紙箱 |
| 屏蔽 | 是 |
| 端子基材 | 磷青銅 |
| Selectively Loaded | No |
| PCB Mount Alignment Type | Hold Downs |
| UL 易燃性等級 | UL 94V-0 |
| PCB Mount Alignment | With |
| 內屏蔽材料 | 銅合金 |
| 前面板接地 | 帶有 |
| 端子接觸部電鍍材料 | 金 |
| 殼體顏色 | 黑色 |
| 產品類型 | 連接器 |
| 高度?(mm) | 9.52 |
| 端子類型 | 插座 |
| PCB 安裝固定 | 帶有 |
| 長度?(mm) | 22.61 |
| PCB 安裝方向 | 垂直 |
| 封裝數量 | 360 |
| 外殼材料 | 聚酯 |
| Underplate Material | Nickel |
| 外屏蔽電鍍材料 | 銅打底錫鉛 |
| 內屏蔽電鍍材料 | 鎳打底鍍錫鉛 |
| 機構/標準 | CSA, UL |
| PCB Mounting Style | Through Hole |
| UL 文件號 | E28476 |
| Connector Configuration | Mini DIN |
| 堆疊 | 否 |
| 前面板旋入 | 帶有 |
| 連接器和端子端接到 | 印刷電路板 |
| 工組溫度范圍?(°C) | -55 – 105 |
| 尾部長度 | 3.18?mm?[?.125?in?] |
