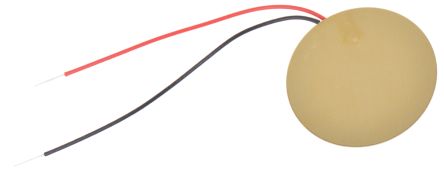

7BB-20-6L0
Audio Diaphragm Piezo Wire Lead 5700Hz to 6900Hz
廠商型號:
7BB-20-6L0
芯天下內部編號:
233-7BB-20-6L0
生產廠商:
murata electronics
描述:
Audio Diaphragm Piezo Wire Lead 5700Hz to 6900Hz
產品類別:
Sensors and Transducers|Audio Sensors and Transducers|Audio Indicators and Alerts

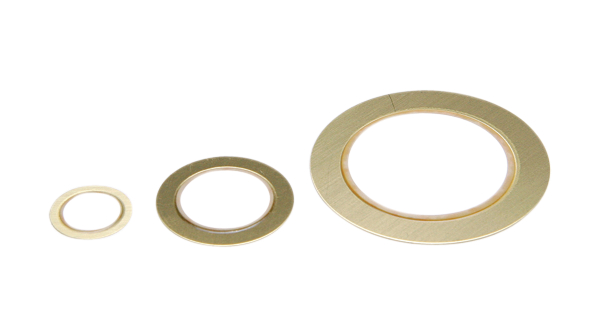

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Maximum Resonant Frequency | 6900 Hz |
| Technology | Piezo |
| Frequency Range | 5700 to 6900 Hz |
| Tone Mode | External Drive |
| Type | Diaphragm |
| Termination Method | Wire Lead |
| Product Diameter | 20 mm |
| Product Height | 0.42 mm |
| Standard Package | Bulk |
| EU RoHS | Compliant |
| Product Diameter | 20 |
| Number of Terminals | 2 |
| Product Height | 0.42 |
| Packaging | Bulk |
| Maximum Resonant Frequency | 6900 |
| Frequency Range | 5700 to 6900 |
| Subcategory | Audio Indicator and Alerts |
| Lead Time | 42 Days |
| Capacitance @ Frequency | 10000pF @ 1kHz |
| Impedance | 1 kOhm |
| Frequency | 6.3kHz |
| Termination | Wire Leads |
| Other Names | 490-7712 |
| Size | 0.79" Dia (20mm) |
| rohs | Lead free / RoHS Compliant |
| Diameter | 20 mm |
| Product | Piezoelectric Diaphragms |
| Product Category | Audio Indicators & Alerts |
| Dimensions | 0.42 mm H |
| Factory Pack Quantity | 600 |
| Series | 7BB |
| Termination Style | Wire Leads |
| Height | 0.42 mm |
| RoHS | RoHS Compliant By Exemption |
| Transducer Function | :Diaphragm |
| Resonant Frequency | :6.3kHz |
| External Diameter | :20mm |
| External Height | :0.2mm |
| SVHC | :Lead titanium zirconium oxide (20-Jun-2013) |
| Capacitance | :0.01μF |
| Capacitance Max | :13nF |
| External Length / Height | :0.2mm |
| Insulation Resistance | :100Mohm |
| Lead Length | :50mm |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Weight (kg) | 0.083 |
| Tariff No. | 85311095 |
