7C-12.000MBA-T
標準クロック発振器 9 12.000MHz 3.3V25ppm(-10 +70C)
廠商型號:
7C-12.000MBA-T
芯天下內部編號:
789-7C-12-000MBA-T
生產廠商:
TXC Corporation
描述:
標準クロック発振器 9 12.000MHz 3.3V25ppm(-10 +70C)
產品類別:
Crystals and Oscillators|Oscillators|7C

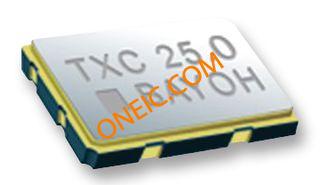

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| メーカ | TXC Corporation |
| RoHS | RoHS 認証 |
| 製品 | XO |
| パッケージ/ケース | 5 mm x 3.2 mm |
| 周波數 | 12 MHz |
| 周波數安定性 | 25 PPM |
| 供給電圧 | 3.3 V |
| 末端様式 | SMD/SMT |
| 最低動作溫度 | - 10 C |
| 最高動作溫度 | + 70 C |
| 寸法 | 3.2 mm W x 5 mm L |
| パッケージ化 | Reel |
| シリーズ | 7C |
| 取り付け様式 | Solder Pad |
| 工場パックの數量 | 1000 |
| Function | Tri-State (Output Enable) |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Standard Package | 1,000 |
| Packaging | Tape & Reel (TR) |
| Height | 0.055" (1.40mm) |
| Frequency Stability | ±25ppm |
| Current - Supply (Max) | 30mA |
| Frequency | 12MHz |
| Voltage - Supply | 3.3V |
| Package / Case | 4-SMD, No Lead (DFN, LCC) |
| Output | CMOS |
| Operating Temperature | -10°C ~ 70°C |
| Type | XO (Standard) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 887-1383-1 |
| Factory Pack Quantity | 1000 |
| Product | XO |
| Dimensions | 3.2 mm W x 5 mm L |
| Series | 7C |
| Termination Style | SMD/SMT |
| Mounting Style | Solder Pad |
| Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 10 C |
| Maximum Operating Temperature | + 70 C |
| Supply Voltage Min | :3.3V |
| Supply Voltage Max | :3.3V |
| Load Capacitance | :30pF |
| Oscillator Mounting | :SMD |
| No. of Pins | :4 |
| Operating Temperature Min | :-10°C |
| Operating Temperature Max | :70°C |
| Operating Temperature Range | :-10°C to +70°C |
| Resonator Case | :SMD |
| Weight (kg) | 0.0001 |
| Tariff No. | 85416000 |
