8061.0240.0000

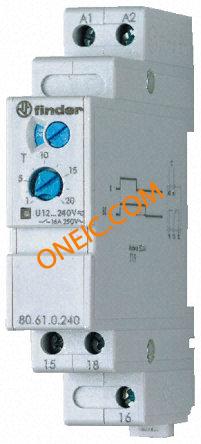

Time Delay Relay Finder 8061.0240.0000, 0.1 to 20s Screw SPDT 400V ac 250V ac
廠商型號:
8061.0240.0000
芯天下內部編號:
1581-8061-0240-0000
生產廠商:
Finder
描述:
Time Delay Relay Finder 8061.0240.0000, 0.1 to 20s Screw SPDT 400V ac 250V ac
產品類別:
Automation & Control Gear|Timers & Counters|Time Delay Relays
客戶編號:
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Contact Configuration | NO/NC |
| Contact Material | Silver Nickel |
| Current Maximum | 15 A |
| Depth | 60.8mm |
| Length | 84mm |
| Maximum Operating Temperature | +50°C |
| Maximum Voltage | 400 V ac |
| Minimum Operating Temperature | -10°C |
| Minimum Voltage | 250 V ac |
| Mode of Operation | Power OFF Delay, True OFF Delay |
| Mounting Type | DIN Rail |
| Number of Contacts | 1 |
| Number of Timer Functions | Multi Function |
| Power Supply | External |
| Supply Voltage | 24 → 240 V ac/dc |
| Switch Configuration | SPDT |
| Terminal Type | Screw |
| Time Delay | 100 ms |
| Time Increment | Seconds |
| Time Range | 0.1 → 20 s |
| Width | 17.5mm |
