8168SH9ABE2
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
廠商型號:
8168SH9ABE2
芯天下內部編號:
54-8168SH9ABE2
生產廠商:
c&k components
描述:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
產品類別:
Switches and Relays|Switches|Push Button Switch

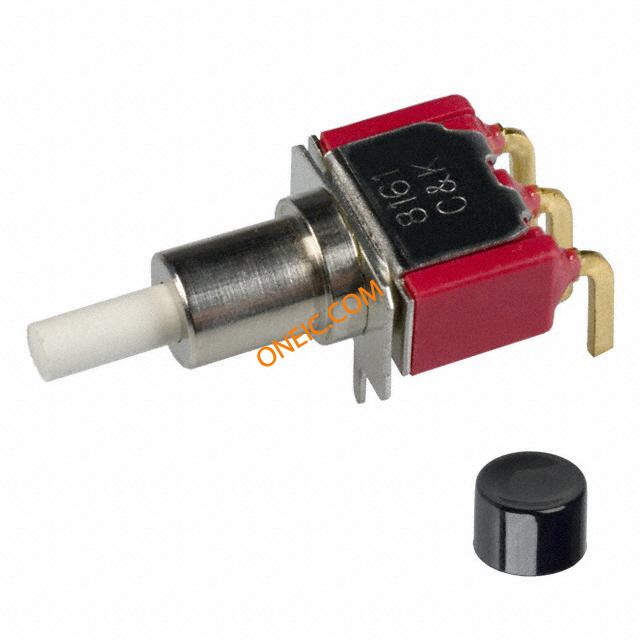

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Switch Configuration | ON Mom |
| Pole Throw Configuration | SPDT |
| Mounting | Through Hole |
| Actuator Style | Round Plunger |
| Maximum DC Voltage Rating | 20 V |
| Maximum Power Rating | 0.4@20VAC 20VDC VA |
| Contact Material | Copper Alloy |
| Contact Plating | Gold/Nickel |
| Terminal Type | PC Pins |
| Operating Temperature | -30 to 65 °C |
| Standard Package | Bulk |
| Function | Momentary Contact |
| Electrical Life | 50000 |
| Product Length | 12.57 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 65 |
| Product Depth | 31.47 |
| Body Orientation | Right Angle |
| Product Height | 9.53 |
| Maximum Power Rating | 0.4@20VAC 20VDC |
| Maximum DC Voltage Rating | 20 |
| Base/Housing Material | N/A/Stainless Steel |
| Maximum AC Voltage Rating | 20 |
| Minimum Operating Temperature | -30 |
| Actuator Material | (Glass/Nylon)|(Glass/Polyester) |
| Unit Pack | 1 |
| MOQ | 50 |
| Selling Alternatives | 8168SH9ALE28168SH9AKE28168SH9AME2 |
| Industry Aliases | 8168SH9ABE2 |
| Subcategory | Switch Push Button |
| Lead Time | 77 Days |
| Packaging | Bulk |
| Switch Function | On-Mom |
| Current Rating | 0.4VA (AC/DC) |
| Mounting Type | Through Hole, Right Angle |
| Voltage Rating - AC | 20V |
| Type | Standard |
| Electrical Life | 50,000 Cycles |
| Termination Style | PC Pin |
| Color - Actuator/Cap | Black |
| Actuator Type | Round, Button |
| Voltage Rating - DC | 20V |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 250 V |
| Product Category | Pushbutton Switches |
| Terminal Seal | Epoxy |
| Series | 8020 |
| Contact Form | SPDT |
| Voltage Rating DC | 28 V |
| Mounting Style | Through Hole |
| Actuator | Plunger |
| RoHS | RoHS Compliant |
| Operating Temp Range | -30C to 65C |
| Housing Material | N/A/Stainless Steel |
| Operating Temperature Max Deg. C | 65C |
| Operating Temperature Min Deg. C | -30C |
| Illumination Type | Led |
| Product Length (mm) | 12.57 mm |
| Product Depth (mm) | 38.985 mm |
| Product Height (mm) | 8.92 mm |
| AC Voltage Rating (Max) | 20V VAC |
| DC Voltage Rating (Max) | 20V VDC |
| Application | Telecommunicationsandnetworkingequipment,computersandperipherals,instrumentation |
| ContactForm | SPDT |
| Current,Rating | 6Amps |
| Material,Contact | Gold |
| MountingType | PCB |
| NumberofPoles | 1 |
| NumberofPositions | 2 |
| Operation | On(On) |
| Standards | ULRecognized,CSACertifiedmodelsavailable |
| Termination | PCBPins |
| Voltage,Rating | 120VAC |
