831330C1.CL
Basic / Snap Action Switches SNSW 5A .110 PLAIN 70514194
廠商型號:
831330C1.CL
芯天下內部編號:
85-831330C1-CL
生產廠商:
Crouzet
描述:
Basic / Snap Action Switches SNSW 5A .110 PLAIN 70514194
產品類別:
Switches|Snap Action, Limit Switches|83133
客戶編號:
規格書:
查看PDF

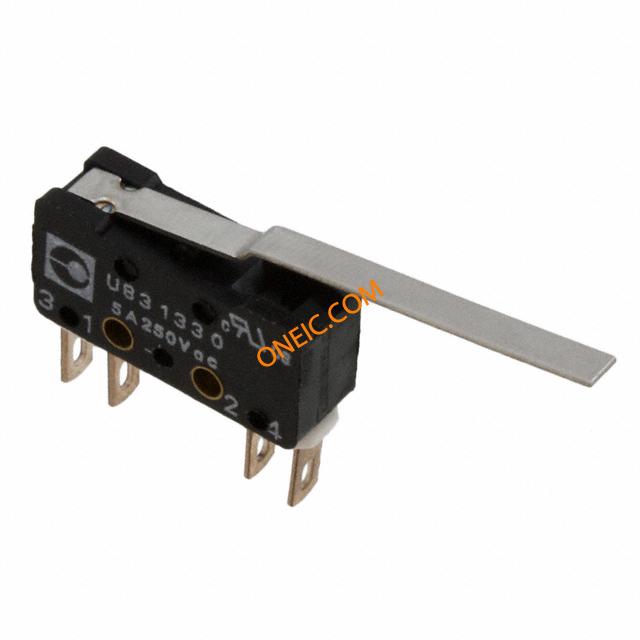

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Bulk |
| Differential Travel | 0.083" (2.1mm) |
| Switch Function | On-Mom |
| Current Rating | 5A (AC) |
| Operating Force, Torque | 35gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 125V |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Operating Position | 0.413" (10.5mm) |
| Operating Temperature | -20°C ~ 125°C |
| Actuator Type | Lever, Straight |
| Standard Package | 1 |
| Pretravel | 0.203" (5.15mm) |
| Release Force | 6gf |
| Mechanical Life | 10,000,000 Cycles |
| Circuit | SPDT-DB |
| Features | Actuator Mounted Left Side |
| rohs | Compliant |
| Body Style | Subminiature |
| Brand/Series | 83133 Series |
| Contact Form | SPDT |
| Current, Rating | 5 Amps |
| Force, Operating | 5.6 Oz. |
| Material, Casing | Glass Filled Polyamide |
| Material, Contact | Silver Alloy |
| Mounting Hole Size | 0.08 " |
| Number of Poles | 1 |
| Operating Force | 1.6 N (Max.) |
| Operation | Snap Action |
| Special Features | Base Terminal |
| Standards | UL Listed, CSA Certified |
| Temperature Rating | –20 to +125 °C |
| Termination | Solder Lugs |
| Type | Basic |
| Voltage, Rating | 250 VAC |
