84140910
Solid State Relays - Industrial Mount 17-32 VDC
廠商型號:
84140910
芯天下內部編號:
85-84140910
生產廠商:
Crouzet
描述:
Solid State Relays - Industrial Mount 17-32 VDC
產品類別:
Optoelectronics|Optocouplers / Photocouplers|Solid State Relays|Solid State Relays - Industrial Mount
客戶編號:
規格書:
查看PDF

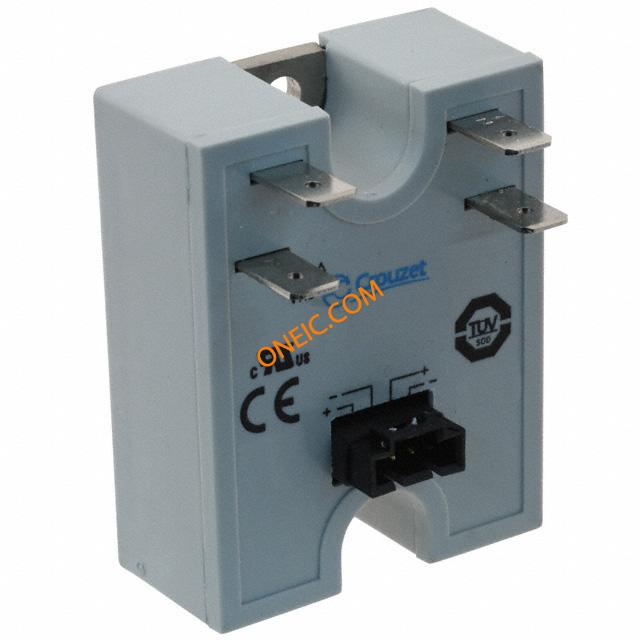

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Solid State Relays - Industrial Mount |
| RoHS | RoHS Compliant |
| Control Voltage Range | 17 VDC to 32 VDC |
| Load Voltage Rating | 24 VAC to 280 VAC |
| Load Current Rating | 40 A |
| Output Device | SCR |
| Product Type | Industrial Mount |
| Factory Pack Quantity | 1 |
| Termination Style | Faston |
| Relay Type | Relay |
| Mounting Type | Chassis Mount or Panel Mount |
| Load Current | 40A |
| Voltage - Load | 24 ~ 280 V |
| Output Type | AC, Zero Cross |
| Packaging | Bulk |
| Circuit | DPST (2 Form A) |
| Standard Package | 20 |
| Voltage - Input | 17 ~ 32VDC |
| Other Names | 646-1039 |
| Package/Case | Hockey Puck |
| rohs | Lead free / RoHS Compliant |
| Height | 22.5mm |
| Length | 57.15mm |
| Maximum Control Voltage | 32 V |
| Maximum Load Current | 40 A |
| Maximum Load Voltage | 280 V |
| Minimum Load Current | 100 mA |
| Switching Type | Zero Crossing |
| Operating Voltage Min | :24VAC |
| Operating Voltage Max | :280VAC |
| Control Voltage DC Min | :17VDC |
| Control Voltage DC Max | :32VDC |
| Contact Configuration | :- |
| Switching Mode | :Zero Crossing |
| Relay Terminals | :Quick Connect |
| Control Voltage Type | :DC |
| Isolation Voltage | :4kV |
| Operating Voltage Range | :24V AC to 280V AC |
| Weight (kg) | 0.1 |
| Tariff No. | 85364900 |
