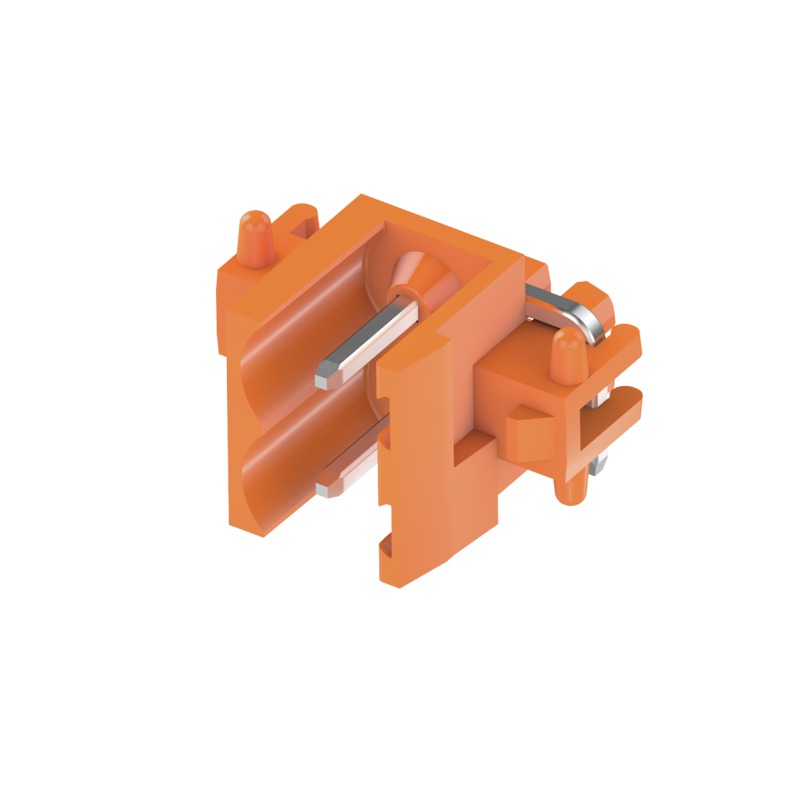

Wavebox 8 POS ST
廠商型號:
8427390000
芯天下內部編號:
629-8427390000
生產廠商:
weidmuller
描述:
Wavebox 8 POS ST
產品類別:
Interconnect|Connector Other
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Wavebox |
| Number of Contacts | 8 |
| Body Orientation | Straight |
| Standard Package | Bulk |
| Temperature range, installation, min | -25?°C |
| Product family | OMNIMATE Signal - series BL/SL 5.08 |
| Solder eyelet hole diameter (D) | 1.3?mm |
| Touch-safe protection acc* to DIN VDE 0470 | IP 20 |
| ETIM 3*0 | EC001284 |
| Number of solder pins per pole | 1 |
| UL 94 flammability rating | V-2 |
| Pin series quantity | 1 |
| Net weight | 1.08?g |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Rated current, min* no* of poles (Ta = 40°C) | 13?A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Number of rows | 1 |
| Certificate No* (cURus) | E60693 |
| L1 in inches | 0.2?inch |
| GTIN (EAN) | 4032248037636 |
| Rated voltage (Use group B) | 300?V |
| Max* relative humidity during storage | 80?% |
| Temperature range, installation, max | 100?°C |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4?kV |
| Contact material | Cu-Leg |
| Rated current, min* no* of poles (Ta = 20°C) | 16?A |
| eClass 7*1 | 27-44-04-02 |
| Type of connection | Pin connection |
| Safety notice | Safety indication |
| UNSPSC | 30-21-18-01 |
| Pitch in mm (P) | 5.08?mm |
| Pitch in inches (P) | 0.2?inch |
| Can be coded | Yes |
| Insulating material | PA |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4?kV |
| Outside diameter of solder pad | 1.7?mm |
| Solder pin dimensions = d tolerance | 0 / -0,03 mm |
| Rated voltage (use group B) | 300?V |
| Contact surface | tinned |
| ETIM 4*0 | EC002637 |
| Rated voltage (use group D) | 300?V |
| ETIM 5*0 | EC002637 |
| Rated voltage for surge voltage class / pollution degree III/2 | 320?V |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| Version | OMNIMATE Signal - series BL/SL 5.08, PCB plug-in connector |
| eClass 9*0 | 27-44-04-02 |
| L1 in mm | 5.08?mm |
| Colour | Orange |
| eClass 6*2 | 27-26-07-04 |
| Solder pin length tolerance | +0.1 / -0.3 mm |
| Solder pin length (l) | 2.4?mm |
| Operating temperature, max | 100?°C |
| Rated current (use group D) | 10?A |
| Storage temperature, min | -25?°C |
| eClass 8*1 | 27-44-04-02 |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Rated voltage for surge voltage class / pollution degree II/2 | 400?V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4?kV |
| Product data | IEC: 400 V / 16 AUL: 300 V / 12.5 A |
| Solder pin dimensions | d = 1.2 mm |
| Rated current (use group B) | 12.5?A |
| Tolerance of solder pin position | +0.1 / -0.1 mm |
| ETIM 6*0 | EC002637 |
| Coating | 4-6 μm SN |
| Outgoing elbow | 90° |
| Packaging | Box |
| Operating temperature, min | -50?°C |
| Insulation resistance | ≥ 108 Ω |
| Plugging cycles | 25 |
| Storage temperature, max | 100?°C |
| Colour chart (similar) | RAL 2000 |
| Rated voltage for surge voltage class / pollution degree III/3 | 250?V |
| No* of poles | 2 |
| ROHS | Conform |
