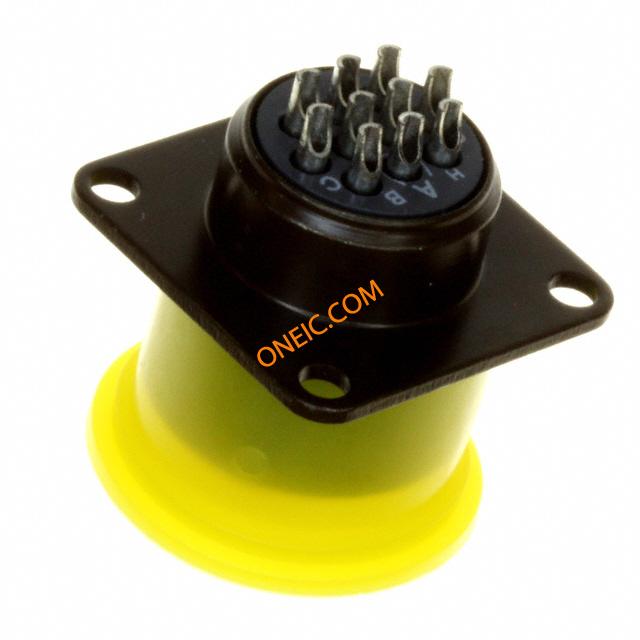

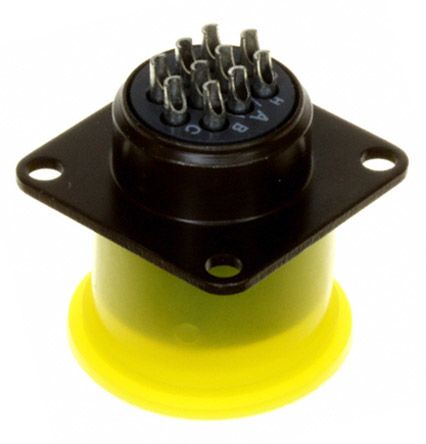

85102E1210S50
CONN RCPT 10POS BOX MNT W/SCKT
廠商型號:
85102E1210S50
芯天下內部編號:
303-85102E1210S50
生產廠商:
Souriau Connection Technology
描述:
CONN RCPT 10POS BOX MNT W/SCKT
產品類別:
Connectors, Interconnects|Circular Connectors|MIL-DTL-26482, 851
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting Type | Panel Mount, Flange |
| Termination | Solder Cup |
| Shell Size - Insert | 12-10 |
| Connector Type | Receptacle, Female Sockets |
| Shell Material, Finish | Olive Drab Cadmium Plated |
| Contact Finish | Gold |
| Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 10 |
| Fastening Type | Bayonet Lock |
| Standard Package | 1 |
| Current Rating | 7.5A |
| Other Names | S85102E1210S50 |
| Orientation | N (Normal) |
| rohs | Contains lead / RoHS non-compliant |
| Series | :- |
| Connector Body Material | :Aluminium |
| Gender | :Receptacle |
| Contact Gender | :Socket |
| Connector Mounting | :Panel |
| Connector Shell Size | :12 |
| Insert Arrangement | :12-10 |
| No. of Contacts | :10 |
| Contact Termination | :Solder |
| Contact Material | :Copper |
| Contact Plating | :Gold |
| Connector Insert Type | :12-10 |
| Contact Resistance | :5ohm |
| Insulation Resistance | :5000ohm |
| Male Contact Material | :Copper Alloy |
| Male Contact Plating | :pre tininng or gold |
| No. of Mating Cycles | :500 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Weight (kg) | 0.01643 |
| Tariff No. | 85369010 |
