ADG211AKNZ

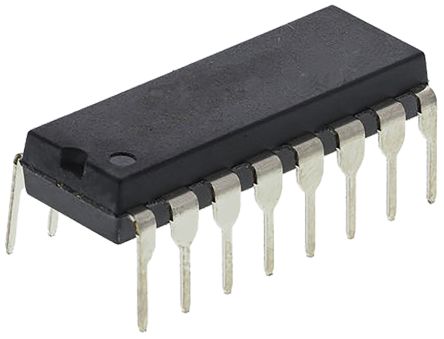

Analog Switch Quad SPST 16-Pin PDIP
廠商型號:
ADG211AKNZ
芯天下內部編號:
1-ADG211AKNZ
生產廠商:
analog devices
描述:
Analog Switch Quad SPST 16-Pin PDIP
產品類別:
Analog Switch Multiplexer
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 16PDIP |
| Type | Analog Switch |
| Maximum On Resistance | 115@±15V Ohm |
| Maximum Turn-Off Time | 450@±15V ns |
| Maximum Turn-On Time | 600@±15V ns |
| Switch Architecture | SPST |
| Configuration | Quad SPST |
| Maximum Dual Supply Voltage | ±22 V |
| Maximum Single Supply Voltage | 25 V |
| Standard Package | Rail / Tube |
| Polarity | Non-Inverting |
| Typical Single Supply Voltage | 15 |
| Maximum On Resistance | 115@±15V |
| Screening Level | Extended |
| Maximum Power Dissipation | 470 |
| Maximum Dual Supply Voltage | ±22 |
| Maximum Turn-Off Time | 450@±15V |
| EU RoHS | Compliant |
| Maximum Supply Current | 1@15V/-0.2@-15V |
| Power Supply Type | Single|Dual |
| Number of Channels per Chip | 4 |
| Minimum Operating Temperature | -40 |
| Supplier Package | PDIP |
| Standard Package Name | PDIP |
| Maximum Operating Temperature | 85 |
| Maximum Single Supply Voltage | 25 |
| Typical Dual Supply Voltage | ±15 |
| Number of Inputs per Chip | 4 |
| Pin Count | 16 |
| Number of Outputs per Chip | 4 |
| Maximum Turn-On Time | 600@±15V |
| Lead Shape | Through Hole |
| Function | Switch |
| Circuit | 4 x SPST - NC |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Voltage Supply Source | Dual Supply |
| Packaging | Tube |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 600μA |
| On-State Resistance | 115 Ohm |
| Voltage - Supply, Single/Dual (±) | ±15V |
| Package/Case | 16-DIP (0.300", 7.62mm) |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 20.07 x 6.35 x 3.3mm |
| Height | 3.3mm |
| Input Signal Type | Single Ended |
| Length | 20.07mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Power Dissipation | 470 mW |
| Minimum Operating Temperature | -40 °C |
| Output Signal Type | Single Ended |
| Package Type | PDIP |
| Switch Type | Analogue |
| Typical Dual Supply Voltage | ±15V |
| Typical Single Supply Voltage | 15 V |
| Width | 6.35mm |
| Operating Supply Voltage | 15 V |
| Mounting Style | Through Hole |
| On Time - Max | 600 ns |
| Series | ADG211A |
| Number of Switches | 4 |
| Switch Voltage - Max | 15 V |
| Switch Configuration | SPST |
| Supply Current - Max | 1 mA |
| Off Time - Max | 450 ns |
| Supply Voltage - Max | 15 V |
| Package / Case | PDIP-16 |
| Factory Pack Quantity | 25 |
| Supply Voltage - Min | 15 V |
| RoHS | No |
| Power Dissipation | 0.47 W |
| Mounting | Through Hole |
| Number of Channels | 4 |
| Operating Temp Range | -40C to 85C |
| Operating Temperature Classification | Industrial |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Dual Supply Voltage (Typ) | ?15 V |
| Power Supply Requirement | Single/Dual |
| Supply Current | 1@15V/-0.2@-15V mA |
| Rad Hardened | No |
| Single Supply Voltage (Max) | 25 V |
| Single Supply Voltage (Typ) | 15 V |
| Dual Supply Voltage (Max) | ?22 V |
| Multiplexer Configuration | Quad SPST |
| Analog Switch ON Resistance | 115@?15V ohm |
| Analog Switch Turn Off Time | 450@?15V ns |
| Analog Switch Turn On Time | 600@?15V ns |
| DELETED | Compliant |
| Analogue Switch Type | :SPST |
| No. of Channels | :4 |
| On State Resistance Max | :115ohm |
| Supply Voltage Range | :± 15V |
| Analogue Switch Case Style | :DIP |
| No. of Pins | :16 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :211 |
| IC Generic Number | :211 |
| Logic Function Number | :211 |
| On Resistance Rds(on) | :115ohm |
| Operating Temperature Range | :-40°C to +85°C |
| Supply Voltage Max | :15V |
| Supply Voltage Source | :Dual |
| Turn Off Time | :450ns |
| Turn On Time | :600ns |
| Weight (kg) | 0.000001 |
| Tariff No. | 85423990 |
