ADN2873ACPZ
Laser Driver VCSEL 4.25Gbps 1-CH 24-Pin LFCSP EP
廠商型號:
ADN2873ACPZ
芯天下內部編號:
1-ADN2873ACPZ
生產廠商:
analog devices
描述:
Laser Driver VCSEL 4.25Gbps 1-CH 24-Pin LFCSP EP
產品類別:
Communication|Fiber Optics|Laser Driver
客戶編號:
規格書:
查看PDF

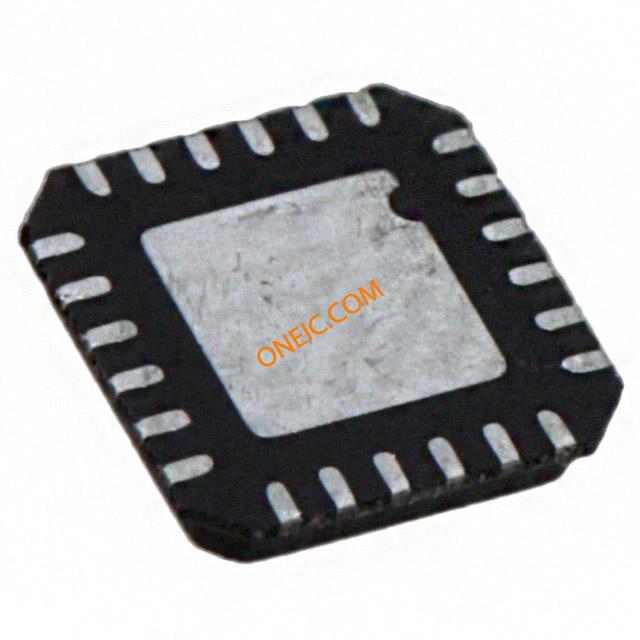

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 24LFCSP EP |
| Data Rate | 4.25 Gbps |
| Number of Channels per Chip | 1 |
| Type | VCSEL |
| Operating Supply Voltage | 3 to 3.6 V |
| Standard Package | Trays |
| Typical Operating Supply Voltage | 3.3 |
| Standard Package Name | LFCSP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Data Rate | 4.25 |
| Supplier Package | LFCSP EP |
| Screening Level | Industrial |
| Maximum Operating Supply Voltage | 3.6 |
| Minimum Operating Supply Voltage | 3 |
| Pin Count | 24 |
| Lead Shape | No Lead |
| Current - Bias | 100mA |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP-VQ (4x4) |
| Packaging | Tray |
| Current - Modulation | 90mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 31mA |
| Number of Channels | 1 |
| Voltage - Supply | 3 V ~ 3.6 V |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 490 |
| Supply Current | 31 mA |
| Mounting Style | SMD/SMT |
| Minimum Operating Temperature | - 40 C |
| Series | ADN2873 |
| Maximum Operating Temperature | + 85 C |
| RoHS | RoHS Compliant |
| Mounting | Surface Mount |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 3 V |
| Package Type | LFCSP EP |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Industrial |
| Operating Supply Voltage (Typ) | 3.3 V |
| Operating Supply Voltage (Max) | 3.6 V |
| 通道數 | 1 |
| 操作溫度 | -40°C ~ 85°C |
| 電壓 - 電源 | 3 V ~ 3.6 V |
| 數據速率 | 4.25Gbps |
| 封裝/外殼 | 24-VFQFN Exposed Pad, CSP |
| 類型 | Laser Diode Driver (Fiber Optic) |
| 電流 - 調制 | 90mA |
| 電流 - 電源 | 31mA |
| 電流 - 偏置 | 100mA |
| Operating Supply Current | 31 mA |
| Brand | Analog Devices |
| Height | 1 mm |
| Length | 4 mm |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| ADN2873ACPZ-R7 | analog devices | Laser Driver VCSEL 4.25Gbps 1-CH 24-Pin LFCSP EP T/R | 查看詳情 |
| ADN2873ACPZ-RL | analog devices | Laser Driver VCSEL 4.25Gbps 1-CH 24-Pin LFCSP EP T/R | 查看詳情 |
