AFBR-1629Z
TX Optical Fiber 50MBd 6-Pin
廠商型號:
AFBR-1629Z
芯天下內部編號:
9-AFBR-1629Z
生產廠商:
Avago Technologies
描述:
TX Optical Fiber 50MBd 6-Pin
產品類別:
Optoelectronics|Fiber Optics - Transmitters - Drive Circuitry Integrated|Versatile Link

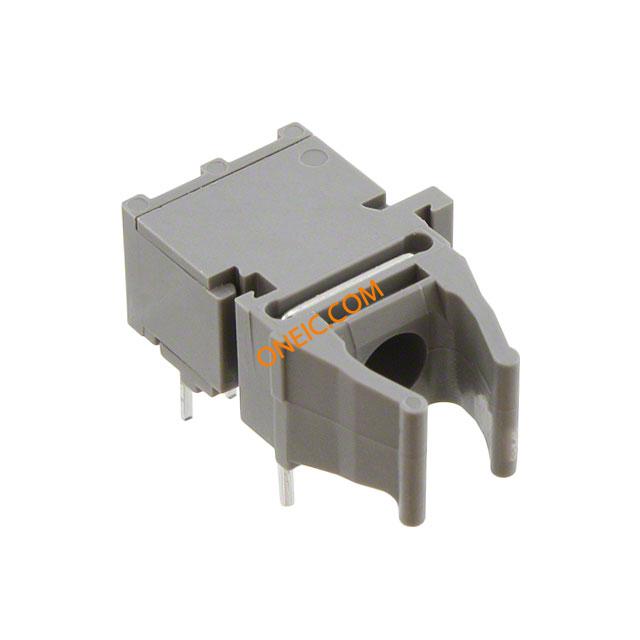

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Typical Operating Supply Voltage | 3.3 |
| Emitter Type | LED |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Maximum Data Rate | 50MBd |
| Minimum Operating Temperature | -40 |
| Package Height | 7.62 |
| Mounting | Snap in |
| Type | TX |
| Rise Time | 5 |
| Maximum Output Current | 10 |
| Peak Wavelength | 685(Max) |
| Package Width | 12.19 |
| PCB | 6 |
| Package Length | 18.8 |
| Maximum Operating Supply Voltage | 3.465 |
| Maximum Fall Time | 5 |
| Minimum Operating Supply Voltage | 3.135 |
| Pin Count | 6 |
| Standard Package | 200 |
| Applications | General Purpose |
| Current - Supply | 21mA |
| Voltage - Supply | 3.135 V ~ 3.465 V |
| Data Rate | 50MBd |
| Wavelength | 650nm |
| rohs | Lead free / RoHS Compliant |
| Operating Supply Voltage | 3.3 V |
| Product | Transmitters |
| Product Category | Fiber Optic Transmitters, Receivers, Transceivers |
| Fiber Type | Plastic Fiber |
| Connector Type | Versatile Link |
| Mounting Style | Snap-In |
| Minimum Operating Temperature | - 40 C |
| Peak Wavelength | 650 nm |
| Maximum Operating Temperature | + 85 C |
| RoHS | RoHS Compliant |
| Forward Current If | :21mA |
| Forward Voltage | :3.3V |
| Fibre Optic Connector Type | :Vlink |
| Data Transmission Distance | :50m |
| Wavelength Typ | :650nm |
| Data Rate Max | :50Mbaud |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.0017 |
| Tariff No. | 85176200 |
