AFCT-5715PZ
TX/RX Optical Fiber 1250MBd 20-Pin SFP
廠商型號:
AFCT-5715PZ
芯天下內部編號:
9-AFCT-5715PZ
生產廠商:
avago technologies
描述:
TX/RX Optical Fiber 1250MBd 20-Pin SFP
產品類別:
Communication|Optical Fiber

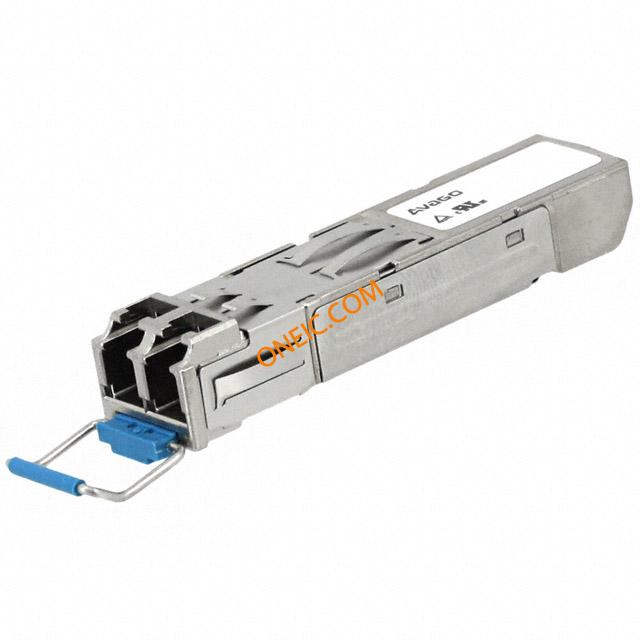

所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 20SFP |
| Type | TX/RX |
| Mounting | Snap Fit To Panel |
| Wavelength | 1355(Max) nm |
| Rise Time | 0.26/0.4 ns |
| Jitter | 0.227(Max) ns |
| Operating Supply Voltage | 3.14 to 3.47 V |
| Standard Package | Trays |
| Product Category | Fiber Optic Transmitters, Receivers, Transceivers |
| RoHS | RoHS Compliant |
| Product | Transceivers |
| Data Rate | 1.25 GBd |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 10 C |
| Package / Case | SFP-20 |
| Fiber Type | Singlemode |
| Factory Pack Quantity | 10 |
| Mounting Type | Pluggable, SFP |
| Connector Type | LC Duplex |
| Applications | Ethernet |
| Voltage - Supply | 3.14 V ~ 3.47 V |
| rohs | Lead free / RoHS Compliant |
| Connector Shape | Round |
| Dimensions | 57.21 x 13.6 x 12.4mm |
| Height | 12.4mm |
| Length | 57.21mm |
| Maximum Data Rate | 8.5GBd |
| Number of Pins | 20 |
| Peak Transmitter Wavelength | 860nm |
| Receiver Jitter at Maximum Data Rate | 83.5ps |
| Transmitter Jitter at Maximum Data Rate | 3.5ns |
| Transmitter Typical Fall Time | 40ps |
| Transmitter Typical Rise Time | 40ps |
| Width | 13.6mm |
| 連接器類型 | LC Duplex |
| 電壓 - 電源 | 3.14 V ~ 3.47 V |
| 數據速率 | 1.25Gbd |
| 應用 | Ethernet |
| 裝配類型 | Pluggable, SFP |
| 波長 | 1310nm |
