AFK227M2AR44T-F

Aluminum Electrolytic Capacitors - SMD 100V 220uF 18X16.5

Thumbnail AFK227M2AR44T-F Thumbnail AFK227M2AR44T-F Thumbnail AFK227M2AR44T-F Thumbnail AFK227M2AR44T-F
廠商型號: AFK227M2AR44T-F
芯天下內部編號: 80-AFK227M2AR44T-F
生產廠商:
Cornell Dubilier Cornell Dubilier
描述: Aluminum Electrolytic Capacitors - SMD 100V 220uF 18X16.5
產品類別: Passive Components|Capacitors|Aluminum Electrolytic Capacitors|Aluminum Electrolytic Capacitors - SMD
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Product Category Aluminum Electrolytic Capacitors - SMD
RoHS RoHS Compliant
Capacitance 220 uF
Tolerance 20 %
Voltage Rating 100 V
ESR 0.15 Ohms
Operating Temperature Range - 55 C to + 105 C

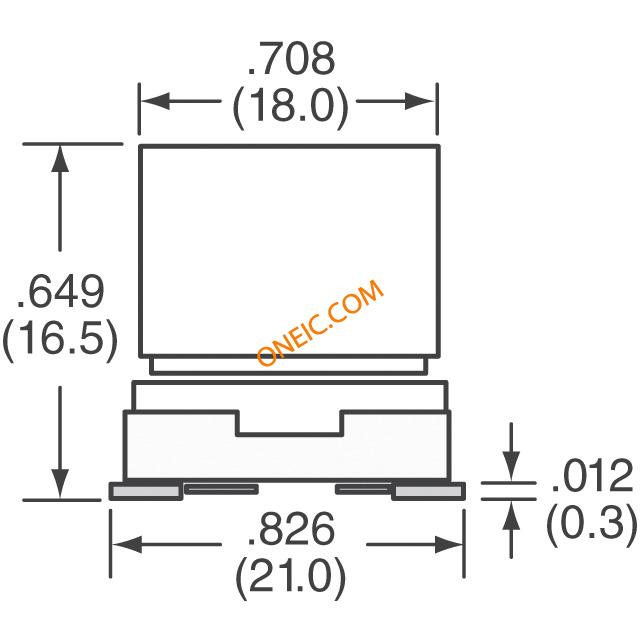

Dimensions 18 mm Dia. x 16.5 mm L x 21 mm H
Product Low ESR Electrolytic Capacitors
Dissipation Factor DF 0.07
Leakage Current 220 uA
Load Life 5000 hr
Packaging Reel
Ripple Current 917 mA
Series AFK
Factory Pack Quantity 125
Termination Style SMD/SMT
メーカ Cornell Dubilier
製品カテゴリ アルミニウム電解キャパシタ - SMD
靜電容量 220 uF
公差 20 %
定格電圧 100 V
動作溫度範囲 - 55 C to + 105 C
寸法 18 mm Dia. x 16.5 mm L x 21 mm H
製品 Low ESR Electrolytic Capacitors
散逸係數 DF 0.07
リーク電流 220 uA
負荷壽命 5000 hr
パッケージ化 Reel
リップル電流 917 mA
シリーズ AFK
工場パックの數量 125
末端様式 SMD/SMT
Capacitance Value 220uF
EU RoHS Compliant
Maximum Operating Temperature 105
Leakage Current 220@2Min
Equivalent Series Resistance Type Low
Equivalent Series Resistance 0.15
Lifetime 5000
Product Height 16.5
Construction Cylindrical
Voltage 100VDC
Mounting Surface Mount
Ripple Current 917
Type Electrolytic
Product Diameter 18
rohs Lead free / RoHS Compliant
Case Diameter 18 mm
Case Height 21 mm
Case Length 16.5 mm
