AGQ210A4H
Low Signal Relays - PCB 1A 4.5VDC DPDT LATCHING SMD
廠商型號:
AGQ210A4H
芯天下內部編號:
282-AGQ210A4H
生產廠商:
Panasonic Electric Works
描述:
Low Signal Relays - PCB 1A 4.5VDC DPDT LATCHING SMD
產品類別:
Electromechanical|Relays|Low Signal Relays - PCB

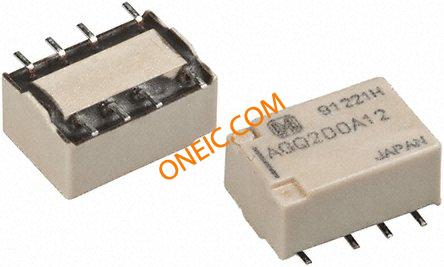

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Low Signal Relays - PCB |
| RoHS | RoHS Compliant By Exemption |

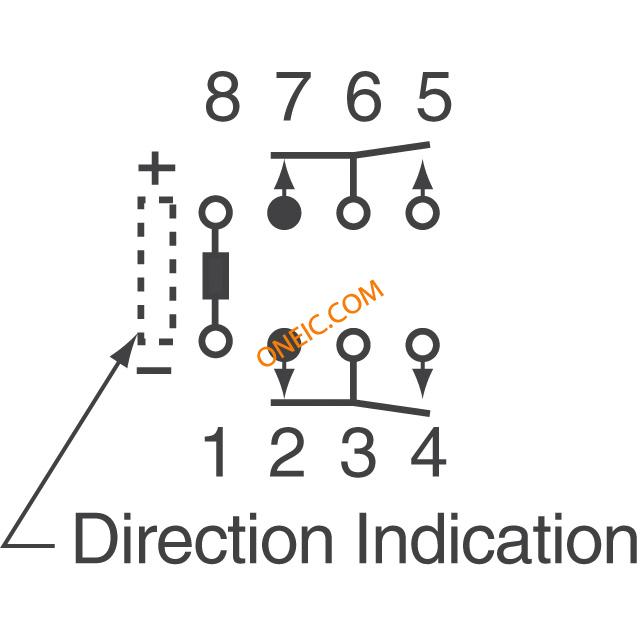

| Contact Form | 2 Form C (DPDT-BM) |
| Contact Current Rating | 1 A |
| Coil Voltage | 4.5 VDC |
| Maximum Switching Current | 1 A |
| Coil Current | 22.2 mA |
| Coil Type | Latching, 1 Coil |
| Power Consumption | 100 mW |

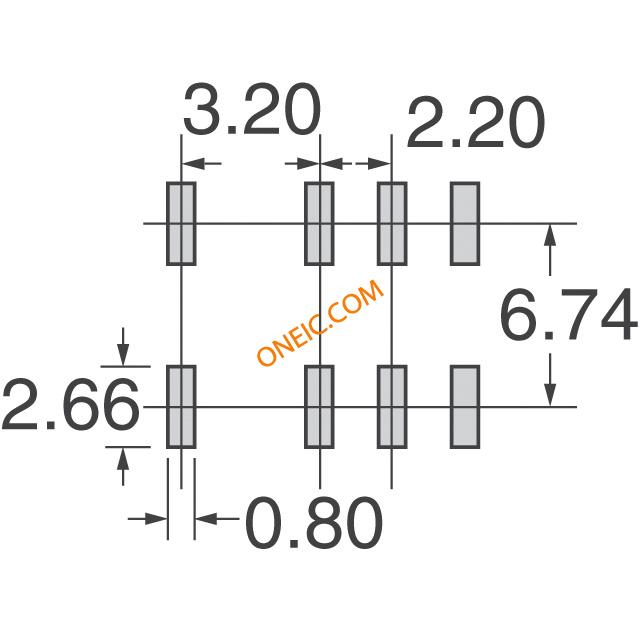

| Termination Style | Solder Pad |
| Contact Rating | 1 A at 30 VDC / 300 mA at 125 VAC |
| Packaging | Tube |
| Factory Pack Quantity | 50 |
| Relay Construction | Latching Single Coil |
| Coil Suppression Diode | No |
| Mounting | Surface Mount |
| Maximum Current Rating | 2 |
| Maximum DC Voltage Rating | 110 |
| Type | General Purpose Relay |
| Coil Current | 22.2 |
| Contact Arrangement | DPDT |
| Push to Test Button | No |
| Minimum Operating Temperature | -40 |

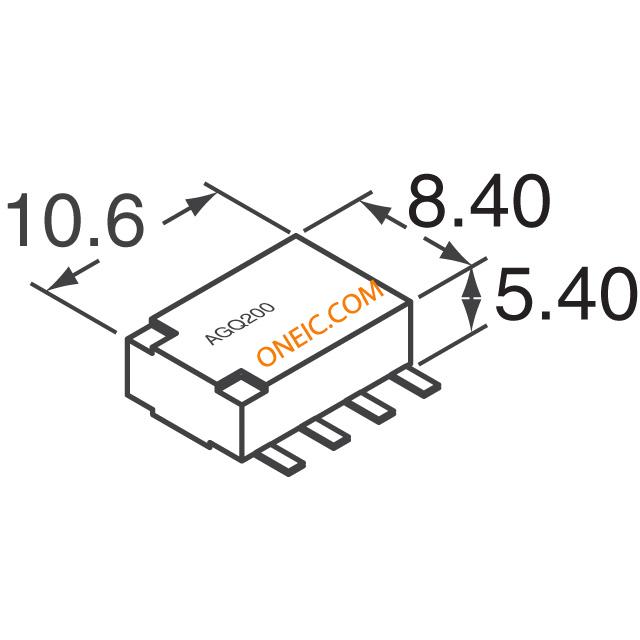

| Product Length | 10.6 |
| Maximum Operating Temperature | 85 |
| Maximum Power Rating | 30W|37.5VA |
| EU RoHS | Compliant |
| Coil Resistance | 202.5 |
| Operate Time | 4 |
| DC Coil Voltage | 4.5 |
| Product Depth | 8.4 |
| Number of Terminals | 8 |
| Maximum AC Voltage Rating | 125 |
| Product Height | 5.4 |
| Seal | Sealed |
| Maximum Pick-Up Voltage | 3.38VDC |
| LED Indicator | No |
| Contact Material | Silver Palladium |
| Turn On Voltage (Max) | 3.38 VDC |
| Coil Power | 100 mW |
| Relay Type | Telecom |
| Switching Voltage | 125VAC, 110VDC - Max |
| Release Time | 4ms |
| Operating Temperature | -40°C ~ 85°C |
| Operate Time | 4ms |
| Contact Rating (Current) | 2A |
| Standard Package | 50 |
| Mounting Type | Surface Mount |
| Coil Resistance | 202.5 Ohms |
| rohs | Lead free / RoHS Compliant |
| Application | Signal |
| Contact Configuration | DPDT |
| Depth | 7.2mm |
| Features | Sealed Construction |
| Height | 5.4mm |
| Isolation Coil To Contact | 1500V rms |
| Length | 10.6mm |
| Life | 100000 (Electrical), 50000000 (Mechanical) cycles |
| Maximum Operating Temperature | +85°C |
| Maximum Switching Current AC | 1 A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Power AC | 37.5 VA |
| Maximum Switching Power DC | 30 W |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 110V dc |
| Terminal Type | Through Hole |
| Contact Current Max | :1A |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :30V |
| Coil Voltage VDC Nom | :4.5V |
| Weight (kg) | 0 |
| Tariff No. | 85364110 |
