AK10-076C
TVS Diodes - Transient Voltage Suppressors TVS 10KA RATED 76V BI AXIAL
廠商型號:
AK10-076C
芯天下內部編號:
206-AK10-076C
生產廠商:
Littelfuse
描述:
TVS Diodes - Transient Voltage Suppressors TVS 10KA RATED 76V BI AXIAL
產品類別:
Circuit Protection|TVS - Diodes|AK10

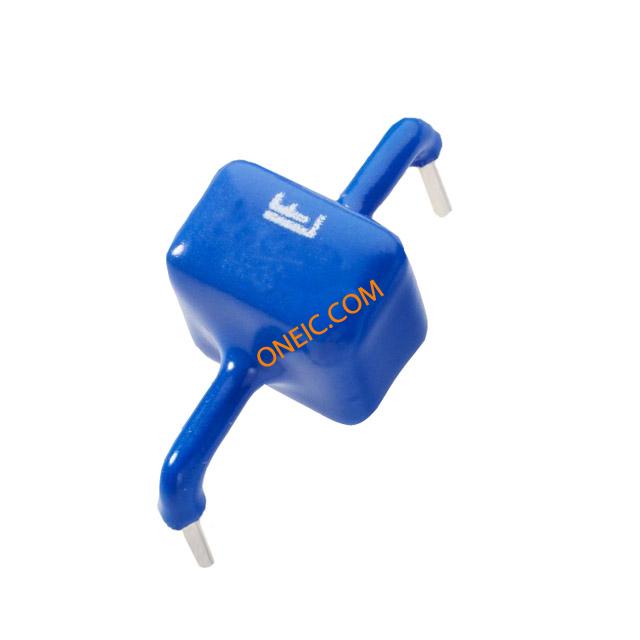

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Minimum Breakdown Voltage | 85 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 150 |
| Package Width | 12.7(Max) |
| Direction Type | Bi-Directional |
| Package Height | 14.48(Max) |
| Maximum Reverse Leakage Current | 20 |
| ESD Protection | No |
| Maximum Clamping Voltage | 140 |
| Maximum Reverse Stand-Off Voltage | 76 |
| Maximum Peak Pulse Current | 10000 |
| Mounting | Through Hole |
| PCB | 2 |
| Package Length | 5.08 |
| Minimum Operating Temperature | -55 |
| Operating Junction Temperature | -55 to 150 |
| Test Current | 10 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Unit Pack | 56 |
| MOQ | 56 |
| Packaging | Tray |
| Voltage - Clamping (Max) @ Ipp | 140V |
| Mounting Type | Through Hole |
| Bidirectional Channels | 1 |
| Supplier Device Package | Axial |
| Voltage - Breakdown (Min) | 85V |
| Voltage - Reverse Standoff (Typ) | 76V |
| Applications | General Purpose |
| Operating Temperature | -55°C ~ 125°C |
| Capacitance @ Frequency | 6.5nF @ 10kHz |
| Standard Package | 56 |
| Power Line Protection | No |
| Type | Zener |
| Other Names | AK10076C |
| Current - Peak Pulse (10/1000μs) | 10000A (10kA) (8/20μs) |
| Package/Case | Axial, Right Angle Bend (24.15mm Center) |
| rohs | Lead free by exemption / RoHS Compliant |
| Polarity | Bidirectional |
| Clamping Voltage | 140 V |
| Product Category | TVS Diodes - Transient Voltage Suppressors |
| Dimensions | 12.7 mm W x 5.08 mm L |
| Factory Pack Quantity | 56 |
| Series | AK10 |
| Termination Style | Axial |
| Channels | 1 Channel |
| Operating Voltage | 76 V |
| Capacitance | 6.5 nF |
| Breakdown Voltage | 85 V |
| RoHS | RoHS Compliant |
| Minimum Operating Temperature | - 55 C |
| Peak Surge Current | 10000 A |
| Maximum Operating Temperature | + 150 C |
| Peak Pulse Power Dissipation | 10000 W |
| Semiconductor structure | bidirectional |
| Multiplicity | 1 |
| Gross weight | 3.63 g |
| Breakdown voltage | 76V |
| Leakage current | 20μA |
| Diode type | transil |
| Max forward impulse current | 10kA |
| Collective package [pcs] | 5 |
| spg | 5 |
| Operating Temperature Range | - 55 C to + 150 C |
| Brand | Littelfuse |
| Length | 5.08 mm |
| Mounting Style | Through Hole |
| Working Voltage | 76 V |
