ALE72B24
General Purpose Relays 1 Form A, 24VDC Dust, 2.88Kohms
廠商型號:
ALE72B24
芯天下內部編號:
282-ALE72B24
生產廠商:
Panasonic Electric Works
描述:
General Purpose Relays 1 Form A, 24VDC Dust, 2.88Kohms
產品類別:
Electromechanical|Relays|General Purpose Relays
客戶編號:
規格書:
查看PDF

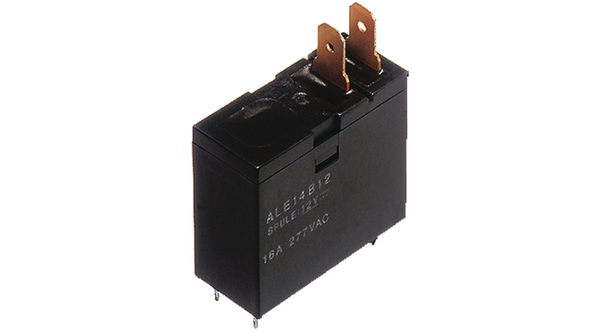

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant |
| Contact Form | 1 Form A (SPST-NO) |
| Contact Current Rating | 16 A |
| Coil Voltage | 24 V |
| Coil Resistance | 2.88 K Ohms |
| Coil Current | 8.3 mA |
| Mounting Style | Through Hole |
| Contact Material | Silver Tin Oxide |
| Coil Termination | Solder Terminal |
| Coil Type | Single Side Stable |
| Contact Termination | Solder Terminal |
| Packaging | Tube |
| Power Consumption | 200 mW |
| Factory Pack Quantity | 100 |
| Turn On Voltage (Max) | 18 VDC |
| Features | Insulation - Class B |
| Turn Off Voltage (Min) | 1.2 VDC |
| Coil Power | 200 mW |
| Relay Type | General Purpose |
| Termination Style | PC Pin, 0.187" Quick Connect |
| Switching Voltage | 277VAC - Max |
| Release Time | 25ms |
| Operating Temperature | -40°C ~ 85°C |
| Operate Time | 20ms |
| Contact Rating (Current) | 16A |
| Standard Package | 100 |
| Mounting Type | Through Hole |
| rohs | Lead free / RoHS Compliant |
| Initial contact resistance, max (By voltage drop 6 V DC 1 A) | 100 mohm |
| Min switching capacity | 100 mA, 5 V DC |
| Operating Function | Single Side Stable |
| Max operating speed (at rated load) | 20 cpm |
| Max switching power | 4,432 V A |
| Unit weight | Approx. 17 g .60 oz |
| Initial breakdown voltage - Between contacts and coil | 4,000 Vrms for 1 min. |
| Current | 16 Amps |
| Temperature rise (at nominal voltage) (resistance method, contact current 16 A, 20C 68F) | Max. 55C Max. 45C (200 mW type) |
| Type | High sensitive type |
| Nominal switching capacity | 16 A 277 V AC |
| Contact material | AgSnO2 type |
| Initial insulation resistance | Min. 1,000 Mohm (at 500 V DC) |
| Functional Shock Resistance | Min. 200 m/s^2{20 G} |
| Coil insulation class | Class B insulation |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 1,000 Vrms for 1 min. |
| Pick-up voltage (max)(at 20C 68F) | 18 VDC |
| Mounting | PC Board |
| Destructive Shock Resistance | Min. 1,000 m/s^2{100 G} |
| SubCategory | Power Relay |
| Release time (with diode) (at nominal voltage) (at 20C 68F) | Max. 20ms Max. 25ms (200 mW type) |
| Nominal operating current, (10%)(at 20C 68F) | 8.3 mA |
| Nominal operating power(at 20C 68F) | 200 mW |
| Max switching current | 16 A |
| Expected life (min operations) - Electrical (at 20 cpm) (Resistive load) | 10^5 |
| Humidity | 5 to 85% R.H. |
| Max allowable voltage(at 20C 68F) | 34.8 VDC |
| Contact Configuration | 1A SPST-NO |
| Ambient temp | 40C to +85C, 40F to +185F |
| Operate time (at nominal voltage) (at 20C 68F) | Max. 20ms |
| Destructive Vibration resistance | 10 to 55Hz at double amplitude of 1.5mm |
| Initial surge voltage between contact and coil | Min. 10,000 V |
| Max switching voltage | 277 V AC |
| Drop-out voltage (min)(at 20C 68F) | 1.2 VDC |
| Coil resistance, (10%)(at 20C 68F) | 2880 ohm |
| Expected life (min operations) - Mechanical (at 180 cpm) | 2 10^6 |
| Functional Vibration resistance | 10 to 55Hz at double amplitude of 1.5mm |
| Nominal operating power | 200 mW |
| Dimensions L x W x H | 28.6 x 12.4 x 24.9 mm |
| Ucoil | 24 |
| Rcoil | 2880 |
| Switching voltage | 277 |
| Contacts | 1 make contact (NO) |
| Pcoil | 200 |
| Switching current | 16 A@ 277 VAC |
| Relay type | Monostable |
| Switching capacity | 4432 VA |
| Temperature range | -40...+85 °C |
| Test voltage | 4 |
| Connection normally open contact | Faston Plug 4.8 mm |
| Protection rating | RT I |
