ANT2525B00BT1516A
PATCH ANT GPS/GLO CP SMD
廠商型號:
ANT2525B00BT1516A
芯天下內部編號:
536-ANT2525B00BT1516A
生產廠商:
Yageo
描述:
PATCH ANT GPS/GLO CP SMD
產品類別:
Passive Components|Antennas

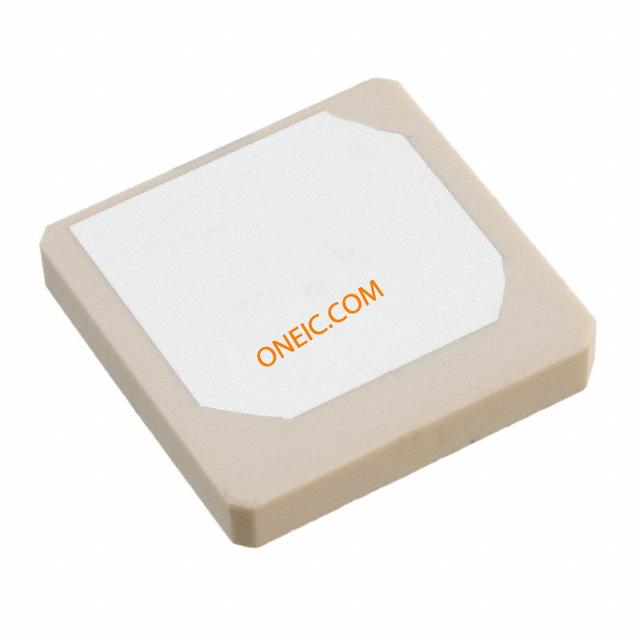

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Number of Bands | 2 |
| Height (Max) | 0.157" (4mm) |
| Antenna Type | Ceramic Patch |
| Termination | Surface Mount |
| Packaging | Tray |
| Frequency | 1575MHz ~ 1609MHz |
| Gain | 4.1dBi |
| Standard Package | 50 |
| Mounting Type | Surface Mount |
| VSWR | 2 |
| Mounting Style | SMD/SMT |
| Product Category | Antennas |
| Dimensions | 25 mm L x 25 mm W x 4 mm H |
| Series | ANT2525 |
| Termination Style | SMD/SMT |
| Height | 4 mm |
| Width | 25 mm |
| Length | 25 mm |
| Impedance | 50 Ohms |
| Technology Type | GPS/GLONASS Patch Antenna |
| RoHS | RoHS Compliant |
| 天線類型 | Ceramic Patch |
| 頻帶數 | 2 |
| 增益 | 4.1dBi |
| 頻率 | 1575MHz ~ 1609MHz |
| 端接 | Surface Mount |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| ANT2525B00BT1575A | Yageo | PATCH ANT GPS CP SMD 25X25X4 MM | 查看詳情 |
| ANT2525B00DT1516A | Yageo | PATCH ANT GPS/GLO CP PIN | 查看詳情 |
| ANT2525B00FT1575A | Yageo | PATCH ANT GPS CP PIN BISECTOR | 查看詳情 |
| ANT2525JB081575A | Yageo | ACTIVE ANT GPS USE 25X25X4 | 查看詳情 |
