AQW217
Solid State Relays - PCB Mount 200v 160ma DIP Form A Norm-Open
廠商型號:
AQW217
芯天下內部編號:
282-AQW217
生產廠商:
Panasonic Electric Works

描述:
Solid State Relays - PCB Mount 200v 160ma DIP Form A Norm-Open
產品類別:
Optoelectronics|Optocouplers / Photocouplers|Solid State Relays|Solid State Relays - PCB Mount
客戶編號:
規格書:
查看PDF

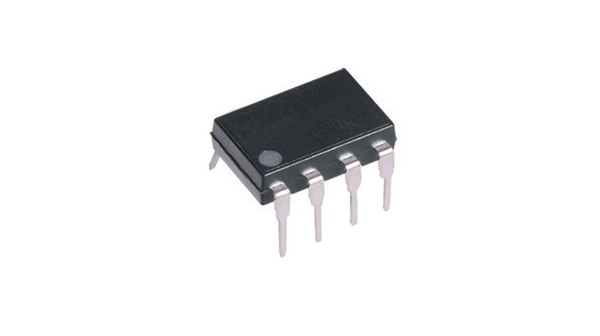

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
參數類型 | 參數值 |
---|---|
Product Category | Solid State Relays - PCB Mount |
RoHS | RoHS Compliant |
Control Voltage Range | 1.5 V to 5 V |
Load Voltage Rating | 200 V |
Load Current Rating | 160 mA |
Contact Form | 2 Form A (DPST-NO) |
Output Device | MOSFET |
Package / Case | DIP-8 |
Mounting Style | Through Hole |
Input to Output Isolation Method | Photocoupler |
Packaging | Tube |
Product Type | PCB Mount |
Factory Pack Quantity | 40 |
Termination Style | Solder Pin |
Supplier Package | DIP |
Standard Package Name | DIP |
EU RoHS | Compliant |
I/O Isolation Voltage | 1500 |
Circuit Arrangement | 2 Form A |
Maximum Input Current | 50 |
Output Type | AC|DC |
Maximum Output Current | 0.16 |
Input Type | DC |
Maximum Output Voltage | 200 |
Maximum Operating Temperature | 85 |
Minimum Operating Temperature | -40 |
Maximum Input Voltage | 1.5 |
Pin Count | 8 |
Lead Shape | Through Hole |
Relay Type | Relay |
Mounting Type | Through Hole |
Load Current | 160mA |
Voltage - Load | 0 ~ 200 V |
Supplier Device Package | 8-DIP |
On-State Resistance | 15 Ohm |
Circuit | DPST (2 Form A) |
Standard Package | 40 |
Voltage - Input | 1.14VDC |
Package/Case | 8-DIP (0.300", 7.62mm) |
rohs | Lead free / RoHS Compliant |
Input Current | 50 mA |
Dimensions L x W x H | 9.78 x 6.4 x 3.9 mm |
Contact resistance | 11 |
Switching voltage | 200 |
Contacts | 2 make contacts (NO) |
Switched current | 160 |
LED off-state voltage | 5 |
Test voltage | 1.5 |
Design | DIP8 |
Temperature range | -40...+85 °C |
LED operating current | 0.9 |
LED maximum current | 50 |
