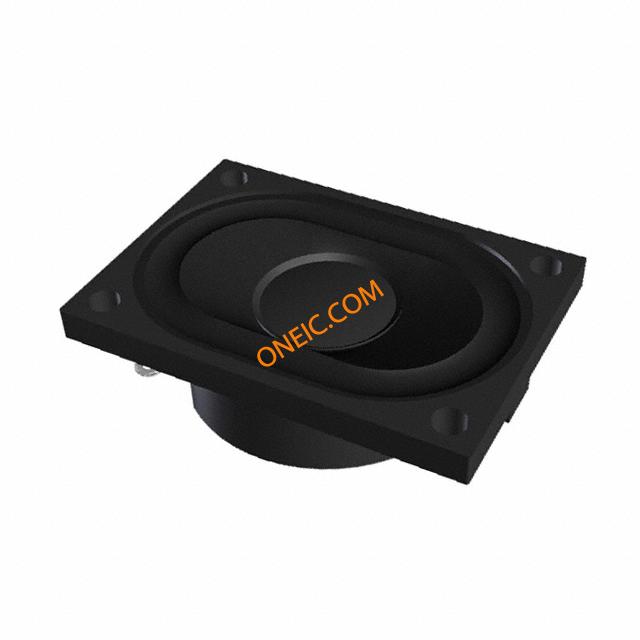

AS04008PO-2-R
Speakers Neodymium Iron Boron 450±20%Hz 2W 84±3dBA 8±15%Ohm Oval Solder Lug
廠商型號:
AS04008PO-2-R
芯天下內部編號:
723-AS04008PO-2-R
生產廠商:
pui audio
描述:
Speakers Neodymium Iron Boron 450±20%Hz 2W 84±3dBA 8±15%Ohm Oval Solder Lug
產品類別:
Sensors and Transducers|Audio Sensors and Transducers|Speakers
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Impedance | 8±15% Ohm |
| Frequency Range | 450 to 20000 Hz |
| Housing Material | Acrylonitrile Butadiene Styrene |
| Technology | Magnet |
| Maximum Input Power | 2 W |
| Shape | Oval |
| Cone Material | Paper |
| Magnet Material | Neodymium Iron Boron |
| Termination Method | Solder Lug |
| Product Length | 40 mm |
| Product Height | 11.5 mm |
| Product Depth | 28.3 mm |
| Standard Package | Bulk |
| Material - Cone | Paper |
| Sound Pressure Level | 84dB |
| Power - Rated | 1W |
| Height | 11.50mm |
| Size / Dimension | 40.00mm L x 28.30mm W |
| Power - Max | 2W |
| Material - Magnet | Nd-Fe-B |
| Termination | Solder Eyelet(s) |
| Type | Magnetic |
| rohs | Lead free / RoHS Compliant |
| Product | Speakers |
| Product Category | Speakers & Transducers |
| Operating Temperature Range | - 20 C to + 60 C |
| Termination Style | Solder Tab |
| Length | 40 mm |
| Packaging | Tray |
| Width | 28.3 mm |
| Depth | 11.5 mm |
| Frequency | 450 Hz to 20 kHz |
| Power Rating | 1 W |
| RoHS | RoHS Compliant |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| AS04008PO-2-WR-R | pui audio | Speakers Neodymium Iron Boron 450±20%Hz 2W 84±3dBA 8±15%Ohm Oval Solder Lug | 查看詳情 |
| AS04008PO-R | pui audio | Speakers Neodymium Iron Boron 380±20%Hz 4W 84±3dBA 8±15%Ohm Oval Solder Lug | 查看詳情 |
| AS04008PO-WR-R | pui audio | Speakers Neodymium Iron Boron 380±20%Hz 4W 84±3dBA 8±15%Ohm Oval Solder Lug | 查看詳情 |
| AS04008C0-R | PUI Audio | Speakers & Transducers 8 OHM 2W 200-20K HZ | 查看詳情 |
| AS04008CO | PUI Audio | Speakers & Transducers 2W 8OHM OVL SHP SPKR | 查看詳情 |
| AS04008CO-2-R | pui audio | Speakers Neodymium Iron Boron 550±20%Hz 3W 84±3dBA 8±15%Ohm Oval Solder Lug | 查看詳情 |
| AS04008CO-2-WR-R | pui audio | Speakers Neodymium Iron Boron 550±20%Hz 3W 84±3dBA 8±15%Ohm Oval Solder Lug | 查看詳情 |
| AS04008CO-4-R | pui audio | Speakers Neodymium Iron Boron 450±20%Hz 3W 83±3dBA 8±15%Ohm Oval Solder Pad | 查看詳情 |
| AS04008CO-4-WR-R | pui audio | Speakers Neodymium Iron Boron 450±20%Hz 3W 83±3dBA 8±15%Ohm Oval Solder Pad | 查看詳情 |
| AS04008CO-LWC83-R | pui audio | 查看詳情 | |
| AS04008CO-R | pui audio | Speakers Neodymium Iron Boron 400±20%Hz 3W 83±3dBA 8±15%Ohm Oval Solder Pad | 查看詳情 |
| AS04008CO-WR-R | pui audio | Speakers Neodymium Iron Boron 400±20%Hz 3W 83±3dBA 8±15%Ohm Oval Solder Pad | 查看詳情 |
| AS04008MR-11-R | pui audio | 查看詳情 | |
| AS04008MR-5-R | pui audio | Speakers Neodymium Iron Boron 800±20%Hz 0.2W 82±3dBA 8±15%Ohm Round Solder Lug | 查看詳情 |
| AS04008MR-7-LWC59-2-R | pui audio | 查看詳情 | |
| AS04008MR-8-R | pui audio | 查看詳情 | |
| AS04008MS-R | PUI Audio | Speakers & Transducers .4W 8 OHM 90DB 800HZ MYLAR | 查看詳情 |
| AS04008PR-R | pui audio | Speakers Neodymium Iron Boron 700±20%Hz 0.8W 92±3dBA 8±15%Ohm Round Solder Pad | 查看詳情 |
| AS04008PR-WR-R | pui audio | Speakers Neodymium Iron Boron 700±20%Hz 0.8W 92±3dBA 8±15%Ohm Round Solder Pad | 查看詳情 |
| AS04008PS-2-R | PUI Audio | Speakers & Transducers 8 Ohm 530-8000Hz | 查看詳情 |
