ASDXAVX001PGAA5
Board Mount Pressure Sensors GAGE 0 psi to 1.0 psi
廠商型號:
ASDXAVX001PGAA5
芯天下內部編號:
159-ASDXAVX001PGAA5
生產廠商:
Honeywell
描述:
Board Mount Pressure Sensors GAGE 0 psi to 1.0 psi
產品類別:
Semiconductors|Sensor ICs|Board Mount Pressure Sensors
客戶編號:
規格書:
查看PDF

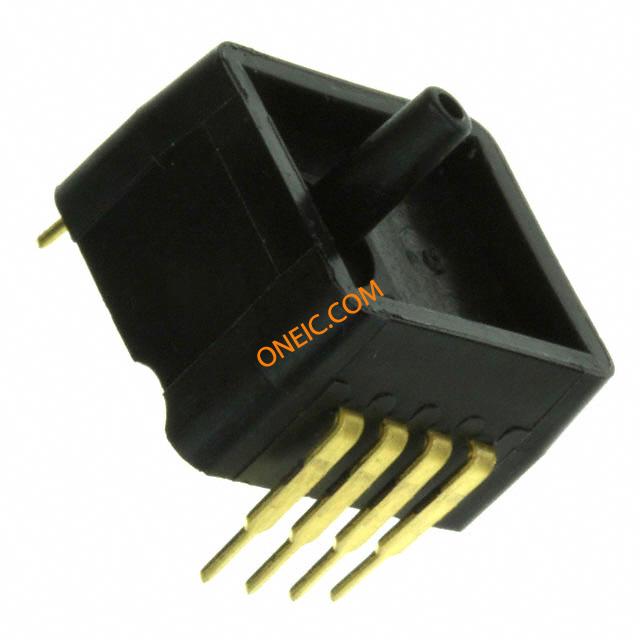

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Board Mount Pressure Sensors |
| RoHS | RoHS Compliant |
| Operating Pressure | 0 psi to 1 psi |
| Pressure Type | Gauge |
| Accuracy | 2 % |
| Output Type | Analog |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 5 V |
| Package / Case | DIP-8 |
| Port Type | Single Axial Barbless |
| Maximum Operating Temperature | + 105 C |
| Minimum Operating Temperature | - 20 C |
| Port Size | 2.31 mm |
| Supply Current | 2.5 mA |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Life | NRND: Not recommended for new designs. |
| Typical Operating Supply Voltage | 5 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Maximum Supply Current | 3.5 |
| ESD Protection | Yes |
| Operating Pressure Range | 0psi to 1psi |
| Maximum Overload Pressure | 2psi |
| Maximum ESD Protection Voltage | 3(Min)@HBM |
| Minimum Operating Temperature | -20 |
| Maximum Operating Supply Voltage | 5.25 |
| Minimum Operating Supply Voltage | 4.75 |
| Pin Count | 8 |
| Selling Alternatives | ASDX001G24R |
| Subcategory | Board Mount Pressure Sensor |
| Lead Time | 84 Days |
| Output | Analog |
| Termination Style | PCB |
| Operating Temperature | -20°C ~ 105°C |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Standard Package | 1 |
| Other Names | 480-3289 |
| Package/Case | 8-DIP Module |
| rohs | Lead free / RoHS Compliant |
| BodyStyle | Rectangular |
| Function | Pressure |
| MountingType | PCB |
| PrimaryType | Pressure |
| Range,Measurement | 1PSIG |
| SensingMode | Gage |
| Technology | Piezoelectric |
| Voltage,Supply | 3.3-5VDC |
| Measurement Type | Gage |
| Signal Conditioning | Amplified |
| Pressure Range | 0 psi to 1 psi |
| Overpressure | 2x Operating pressure |
| Supply Voltage | 5 Vdc |
| Temperature Compensation | Yes |
| Output Calibration | Yes |
| Response Time | 1 ms typ. |
| Termination | PCB |
| Port Style | AV: axial port on top, vented cover on bottom |
| Package Type | DIP |
| Total Error (% Full Scale) | 2.0 max. |
| Shock | 100 g for 11 ms |
| Vibration | 10 g at 20 Hz to 2000 Hz |
| Compensated Temperature Range | 0 °C to 85 °C [32 °F to 185 °F] |
| Storage Temperature | -50 °C to 125 °C [-58 °F to 257 °F] |
| Media Compatibility | Clean, dry gases only. |
| UNSPSC Code | 41111927 |
| UNSPSC Commodity | 41111927 Pressure Sensors |
| Comment | Lead soldering temperature up to 4 s at 250 °C [482 °F] |
| Series Name | ASDX |
