ASMT-AH00-AQR01
High Power LEDs - Single Color Red-Orange 1 Watt
廠商型號:
ASMT-AH00-AQR01
芯天下內部編號:
9-ASMT-AH00-AQR01
生產廠商:
Avago Technologies
描述:
High Power LEDs - Single Color Red-Orange 1 Watt
產品類別:
Optoelectronics|LED Lighting|LED Emitters|High Power LEDs - Single Color

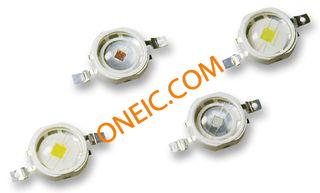

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | High Power LEDs - Single Color |
| RoHS | RoHS Compliant |
| Illumination Color | Orange |
| Wavelength | 615 nm |
| Luminous Flux/Radiant Flux | 46 lm |
| Forward Current | 350 mA |
| Forward Voltage | 2.1 V |
| Mounting Style | SMD/SMT |
| Power Rating | 1 W |
| Packaging | Reel |
| Lens Color/Style | Clear |
| Maximum Operating Temperature | + 115 C |
| Minimum Operating Temperature | - 40 C |
| Factory Pack Quantity | 500 |
| Viewing Angle | 140 deg |
| Life | Obsolete |
| Voltage - Forward (Vf) Typ | 2.1V |
| Current - Max | 500mA |
| Voltage - Forward @ Max Current | 2.25V |
| Mounting Type | Surface Mount |
| Flux @ 25°C, Current - Test | 42 lm (31 lm ~ 52 lm) |
| Color | Red |
| Standard Package | 500 |
| Thermal Resistance of Package | 10°C/W |
| Lumens/Watt @ Current - Test | 57 lm/W |
| Flux @ 85°C, Current - Test | 24 lm |
| Lumens @ Current - Max | 43 lm |
| Current - Test | 350mA |
| Package/Case | 7.40mm L x 7.40mm W x 4.10mm H |
| rohs | Contains lead / RoHS non-compliant |
