AT89S52-24AU
MCU 8-bit AT89 80C51 CISC 8KB Flash 5V 44-Pin TQFP
廠商型號:
AT89S52-24AU
芯天下內部編號:
8-AT89S52-24AU
生產廠商:
atmel
描述:
MCU 8-bit AT89 80C51 CISC 8KB Flash 5V 44-Pin TQFP
產品類別:
Microcontroller

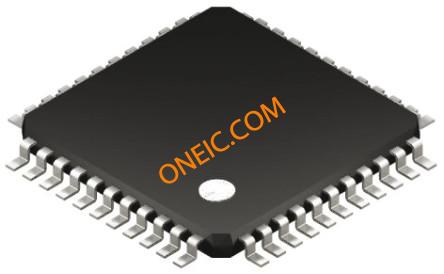

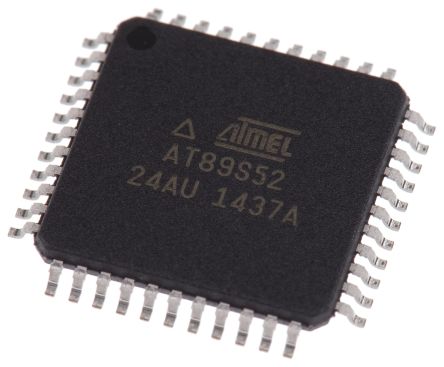

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 44TQFP |
| Device Core | 80C51 |
| Family Name | AT89 |
| Program Memory Type | Flash |
| Program Memory Size | 8 KB |
| Maximum Speed | 24 MHz |
| Data Bus Width | 8 Bit |
| RAM Size | 256 byte |
| Operating Supply Voltage | 5 V |
| Operating Temperature | -40 to 85 °C |
| Interface Type | UART |
| Number of Programmable I/Os | 32 |
| Number of Timers | 3 |
| Watchdog | 1 |
| Standard Package | Trays |
| Mounting | Surface Mount |
| Package Width | 10 |
| PCB | 44 |
| EU RoHS | Compliant |
| Instruction Set Architecture | CISC |
| UART | 1 |
| Maximum Operating Supply Voltage | 5.5 |
| Minimum Operating Temperature | -40 |
| Supplier Package | TQFP |
| Standard Package Name | QFP |
| Maximum Operating Temperature | 85 |
| Maximum Clock Rate | 24 |
| Data Bus Width | 8 |
| Core Architecture | 8051 |
| Maximum Speed | 24 |
| Package Length | 10 |
| CECC Qualified | No |
| Minimum Operating Supply Voltage | 4 |
| Pin Count | 44 |
| Package Height | 1 |
| Typical Operating Supply Voltage | 5 |
| Programmability | Yes |
| Lead Shape | Gull-wing |
| Packaging | Tray |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Oscillator Type | Internal |
| Connectivity | UART/USART |
| Number of I /O | 32 |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 5.5 V |
| Peripherals | WDT |
| Package / Case | 44-TQFP |
| Speed | 24MHz |
| Other Names | AT89S5224AU |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 10.1 x 10.1 x 1.05mm |
| Height | 1.05mm |
| Length | 10.1mm |
| Maximum Frequency | 24MHz |
| Maximum Number of CAN Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Maximum Number of I2C Channels | 0 |
| Maximum Number of LIN Channels | 0 |
| Maximum Number of PCI Channels | 0 |
| Maximum Number of SPI Channels | 0 |
| Maximum Number of UART Channels | 1 |
| Maximum Number of USART Channels | 0 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Timer Resolution | 16bit |
| Timers | 3 x 16 bit |
| Typical Operating Supply Voltage | 4 → 5.5 V |
| Width | 10.1mm |
| Frequency (Max) | 24 MHz |
| Total Internal Ram Size | 256Byte kB |
| Operating Temp Range | -40C to 85C |
| Number of Timers - General Purpose | 3 |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Device Core Size | 8 b |
| Operating Temperature Classification | Industrial |
| Cpu Family | AT89 |
| Programmable | Yes |
| # I/Os (Max) | 32 |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 5 V |
| Operating Supply Voltage (Min) | 4 V |
| Operating Supply Voltage (Max) | 5.5 V |
| Frequency | 24 MHz |
| Controller Family/Series | :(8051) 8052 |
| No. of I/O's | :32 |
| Supply Voltage Min | :4V |
| Supply Voltage Max | :5.5V |
| Digital IC Case Style | :TQFP |
| No. of Pins | :44 |
| RAM Memory Size | :256Byte |
| CPU Speed | :24MHz |
| Embedded Interface Type | :SPI, UART |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Clock Frequency | :33MHz |
| Device Marking | :AT89S52-24AU |
| Flash Memory Size | :8KB |
| IC Generic Number | :89S52 |
| Logic Function Number | :52 |
| Memory Type | :Flash |
| Microprocessor/Controller Features | :8 Interrupt Sources, ISP, UART, PDM, WDT |
| No. of Bits | :8 |
| No. of Timers | :3 |
| Number of bits In Timer | :16 |
| Operating Temperature Range | :-40°C to +85°C |
| Supply Voltage Range | :4V to 5.5V |
| Termination Type | :SMD |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
| A/DInputs | 0 |
| Comparators | 0 |
| EEPROMMemory | 0Bytes |
| InputOutput | 32 |
| Interface | UART |
| MemoryType | Flash |
| NumberofBits | 8 |
| PackageType | 44-pinTQFP |
| ProgrammableMemory | 8KBytes |
| RAMSize | 256Bytes |
| Voltage,Range | 4-5.5V |
| Case | TQFP44 |
| Flash memory capacity | 8kB |
| SRAM memory capacity | 256B |
| Number of inputs/outputs | 32 |
| Multiplicity | 1 |
| Flash memory organisation | 8kx8bit |
| Gross weight | 1.59 g |
| Clock frequency | 24MHz |
| Operating voltage | 4...5.5V |
| Integrated circuit type | microcontroller '51 |
| Collective package [pcs] | 480 |
| Number of 16-bit timers | 2 |
| spg | 480 |
