AVR-M1608C120MT2AB
Var MLV 7.5VDC 15A 12V 0603 SMD T/R
廠商型號:
AVR-M1608C120MT2AB
芯天下內部編號:
367-AVR-M1608C120MT2AB
生產廠商:
tdk
描述:
Var MLV 7.5VDC 15A 12V 0603 SMD T/R
產品類別:
Circuit Protection|Varistor

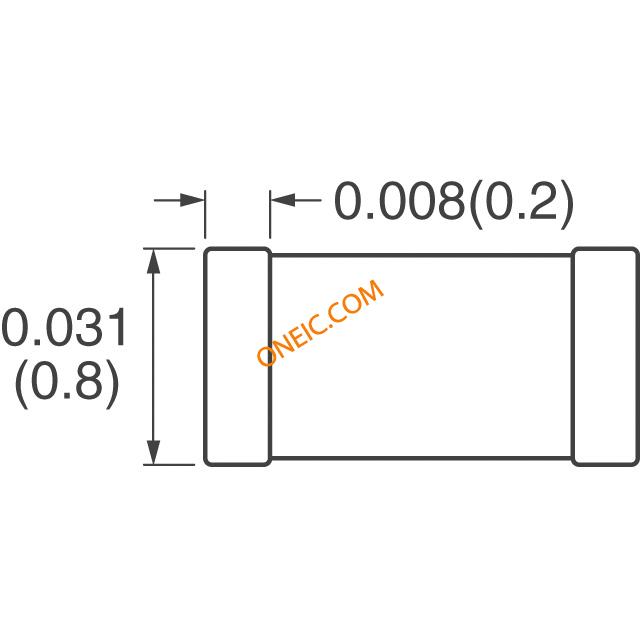

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Size Code | 0603 |
| Capacitance Value | 400 pF |
| Maximum DC Voltage Rating | 7.5 V |
| Clamping Current | 2 A |
| Maximum Surge Current | 15 A |
| Operating Temperature | -40 to 125 °C |
| Varistor Voltage | 12 V |
| Standard Package | Tape & Reel |
| Product Category | Varistors |
| RoHS | RoHS Compliant |
| Voltage Rating DC | 7.5 V |
| Clamping Voltage | 20 V |
| Peak Surge Current | 15 A |
| Surge Energy Rating | 0.06 J |
| Capacitance | 400 pF |
| Operating Temperature Range | - 40 C to + 125 C |
| Mounting | SMD/SMT |
| Packaging | Reel |
| Dimensions | 1.6 mm L |
| Factory Pack Quantity | 4000 |
| Product Length | 1.6 |
| EU RoHS | Compliant |
| Maximum DC Voltage Rating | 7.5 |
| Product Depth | 0.8 |
| Tolerance Voltage | 20% |
| Product Height | 0.8 |
| Varistor Voltage | 12 |
| Clamping Current | 2 |
| Clamping Voltage | 20 |
| Technology | Multilayer |
| Energy | 0.06 |
| Maximum Surge Current | 15 |
| Unit Pack | 4000 |
| MOQ | 4000 |
| Subcategory | Varistor |
| Lead Time | 56 Days |
| Maximum DC Volts | 7.5VDC |
| Energy | 0.06J |
| Current - Surge | 15A |
| Package / Case | 0603 (1608 Metric) |
| Number of Circuits | 1 |
| rohs | Lead free / RoHS Compliant |
| Other Names | 445-2539-1 |
| Operating Temp Range | -40C to 125C |
| Voltage Tolerance | 20 |
| Lead Spacing | Not Required mm |
| Lead Style | Not Required |
| DC Voltage Rating (Max) | 7.5 VDC |
| Surge Current (Max) | 15 A |
| Product Length (mm) | 1.6 mm |
| Product Depth (mm) | 0.8 mm |
| Product Height (mm) | 0.8 mm |
| Product Diameter (mm) | Not Required mm |
| Series | :AVR-M |
| Varistor Type | :ESD Protector |
| Peak Surge Current @ 8/20μs | :50A |
| Varistor Case | :1608 |
| Clamping Voltage Vc Max | :20V |
| Peak Energy (10/1000uS) | :90mJ |
| Voltage Rating V DC | :7.5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (20-Jun-2013) |
| Clamping Voltage @ 8/20μs Max | :20V |
| Peak Pulse Current IPP @ 8/20μs | :50A |
| Suppressor Type | :Varistor |
| Surge Current | :15A |
| Weight (kg) | 0.000005 |
| Tariff No. | 85363010 |
