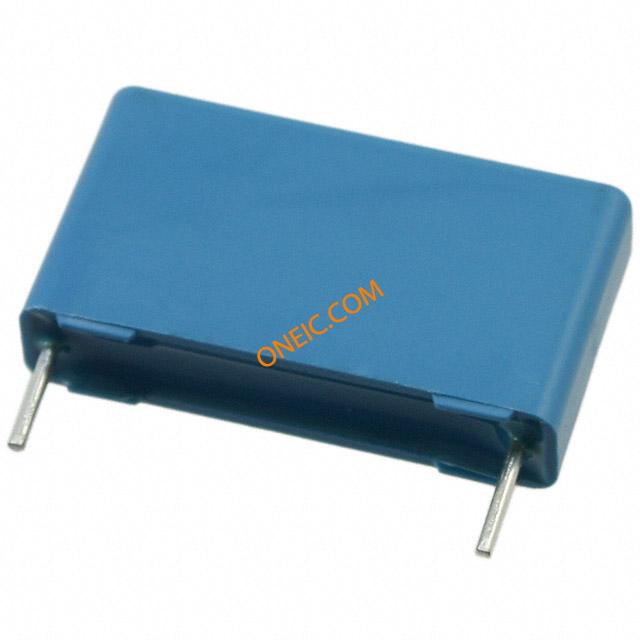

B32923C3334M

Cap Film 0.33uF 305VAC PP 20% 26.5 X 6 X 15mm RDL 22.5mm Bulk

Thumbnail B32923C3334M Thumbnail B32923C3334M Thumbnail B32923C3334M Thumbnail B32923C3334M Thumbnail B32923C3334M
廠商型號: B32923C3334M
芯天下內部編號: 125-B32923C3334M
生產廠商:
tdk epcos tdk epcos
描述: Cap Film 0.33uF 305VAC PP 20% 26.5 X 6 X 15mm RDL 22.5mm Bulk
產品類別: Capacitor|Capacitor Film
客戶編號:
規格書: 查看PDF
瀏覽次數: 1

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Package/Case 26.5(Max) X 6(Max) X 15(Max)
Mounting Through Hole
Capacitance Value 0.33 uF
Voltage 305 Vac
Tolerance 20 %
Dielectric PP
Lead Pitch For Radial 22.5 mm
Operating Temperature -40 to 105 °C
Termination Style Radial
Product Length 26.5(Max) mm
Product Depth 6(Max) mm
Standard Package Bulk
Product Category Film Capacitors
RoHS RoHS Compliant
Product Type AC Pulse, Suppression
Capacitance 0.33 uF
Voltage Rating 305 VAC
Series B32923
Capacitance - nF 330 nF
Capacitance - pF 330000 pF
Packaging Bulk
Product Metallized Polypropylene Suppression Capacitors
Factory Pack Quantity 720
Part # Aliases B32923C3334M000
Lead Diameter 0.8
Product Length 26.5(Max)
EU RoHS Compliant
Suppression Class X2
Product Depth 6(Max)
Product Height 15(Max)
Type EMI Suppression
Lead Pitch For Radial 22.5
Maximum Operating Temperature 105
Seated Plane Height 15(Max)
Dielectric Material Polypropylene (PP)
Height - Seated (Max) 0.591" (15.00mm)
Mounting Type Through Hole
Voltage Rating - AC 305V
Lead Spacing 0.886" (22.50mm)
Size / Dimension 1.043" L x 0.236" W (26.50mm x 6.00mm)
Applications EMI, RFI Suppression
Termination PC Pins
Other Names 495-4205
Features X2 Safety Rated
rohs Lead free / RoHS Compliant
Brand/Series B32923Series
Diameter,LeadWire 0.8mm
DissipationFactor 1%
DissipationFactor,TestCondition @1kHz
InsulationResistance 100000Megohms
LeadPitch 22.5mm
Length 26.5mm
Length,Lead 6mm
Material,Element PolypropyleneFilm
Temperature,Operating,Maximum +125°C
Temperature,Operating,Minimum -55°C
Voltage,Rating 305VAC

相似產品

型號 廠商 描述 操作
B32923C3334M189 tdk epcos Cap Film 0.33uF 305VAC PP 20% 26.5 X 6 X 15mm RDL 22.5mm T/R 查看詳情
B32923C3334M26 epcos (tdk) 查看詳情
B32923C3334M289 tdk epcos Cap Film 0.33uF 305VAC PP 20% 26.5 X 6 X 15mm RDL 22.5mm Ammo Pack 查看詳情
B32923C3334K tdk epcos Cap Film 0.33uF 305VAC PP 10% 26.5 X 6 X 15mm RDL 22.5mm Bulk 查看詳情
B32923C3334K000 EPCOS Film Capacitors 0.33UF 10% 305V FILM CAP MKP X2 查看詳情
B32923C3105K tdk epcos Cap Film 1uF 305VAC PP 10% 26.5 X 11 X 20.5mm RDL 22.5mm Bulk 查看詳情
B32923C3105K189 tdk epcos Cap Film 1uF 305VAC PP 10% 26.5 X 11 X 20.5mm RDL 22.5mm T/R 查看詳情
B32923C3105K289 tdk epcos Cap Film 1uF 305VAC PP 10% 26.5 X 11 X 20.5mm RDL 22.5mm Ammo Pack 查看詳情
B32923C3105M tdk epcos Cap Film 1uF 305VAC PP 20% 26.5 X 11 X 20.5mm RDL 22.5mm Bulk 查看詳情
B32923C3105M189 epcos (tdk) Cap Film 1uF 305VAC PP 20% 26.5 X 11 X 20.5mm RDL 22.5mm T/R 查看詳情
B32923C3105M289 epcos (tdk) Cap Film 1uF 305VAC PP 20% 26.5 X 11 X 20.5mm RDL 22.5mm Ammo Pack 查看詳情
B32923C3105M3 tdk epcos 查看詳情
B32923C3154K tdk epcos Cap Film 0.15uF 305VAC PP 10% RDL 22.5mm Bulk 查看詳情
B32923C3154M tdk epcos FILM CAP 0,15UF 20% 305V MKP X2 查看詳情
B32923C3155M tdk epcos Cap Film 1.5uF 305VAC PP 20% 26.5 X 12 X 22mm RDL 22.5mm Bulk 查看詳情
B32923C3155M000 EPCOS Film Capacitors 1.5uF 305V 20% 22.5mm L/S Class X2 查看詳情
B32923C3155M189 EPCOS Cap Film Suppression X2 1.5uF 305VAC PP 20% (26.5 X 12 X 22mm) Radial 22.5mm 105°C T/R 查看詳情
B32923C3224K tdk epcos Cap Film 0.22uF 305VAC PP 10% 26.5 X 6 X 15mm RDL 22.5mm Bulk 查看詳情
B32923C3224K189 tdk epcos Cap Film 0.22uF 305VAC PP 10% 26.5 X 6 X 15mm RDL 22.5mm T/R 查看詳情
B32923C3224K289 tdk epcos Cap Film 0.22uF 305VAC PP 10% 26.5 X 6 X 15mm RDL 22.5mm Ammo Pack 查看詳情
