B62152A7X1

Ferrite Core Double-Aperture Core 7.25mm 4.2mm 6.2mm Broadband Transformers

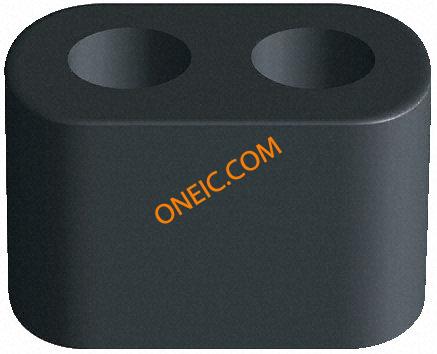

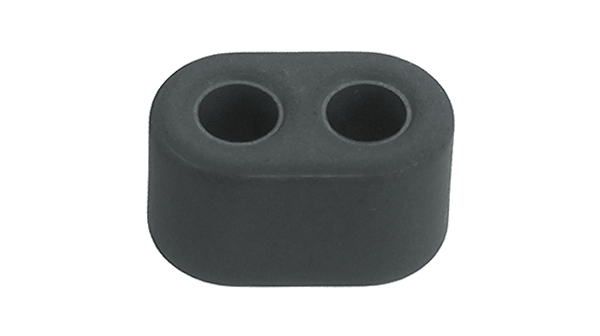

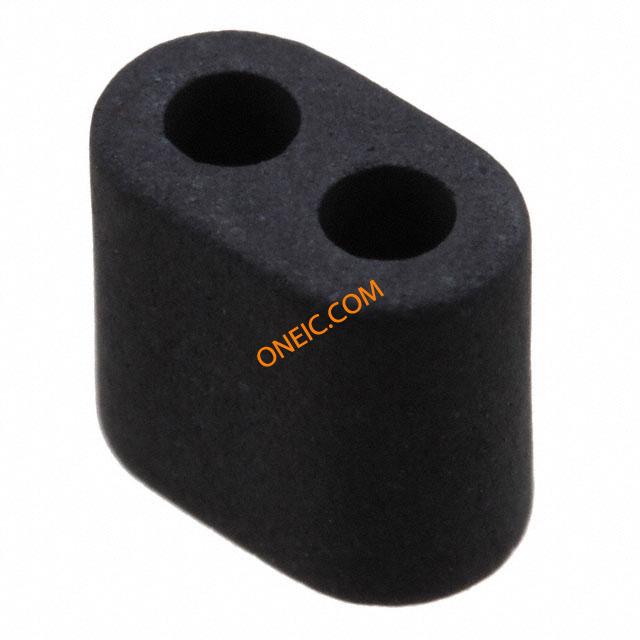

Thumbnail B62152A7X1 Thumbnail B62152A7X1 Thumbnail B62152A7X1
廠商型號: B62152A7X1
芯天下內部編號: 125-B62152A7X1
生產廠商:
tdk epcos tdk epcos
描述: Ferrite Core Double-Aperture Core 7.25mm 4.2mm 6.2mm Broadband Transformers
產品類別: Inductor|Ferrite Core
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Double-Aperture Core
Product Depth 4.2 mm
Product Height 6.2 mm
Product Length 7.25 mm
Applications Broadband Transformers
Family B62152
Standard Package Trays
Product Length 7.25
EU RoHS Compliant
Product Depth 4.2
Product Height 6.2
Application Broadband Transformers
rohs Lead free / RoHS Compliant
Outer Depth 4.2mm
Outer Dimensions 7.25 x 4.2 x 6.2mm
Outer Height 6.2mm
Outer Width 7.25mm
Outside Height 6.2 mm
Outside Width 4.2 mm
Product Multi-Hole Cores
Operating Temperature Range - C
Inside Diameter 1.7 mm
Packaging Bulk
Outside Length 7.25 mm
Frequency 250 MHz
Core Material K1
Inductance 140 nH
Factory Pack Quantity 2000
Pitch Spacing 2.9 mm
Part # Aliases B62152A0007X001
Product Type Double Aperture Core
Test Frequency 100 MHz
RoHS RoHS Compliant
Product Length (mm) 7.25 mm
Product Depth (mm) 4.2 mm
Product Height (mm) 6.2 mm
a 4.2
c 2.9
Inductance constant 140 nH
Description Ferrite core B62152A7X1/K1
h 6.2
Material K1
Relative magnetic permeability 80
b 7.25
d 1.7
