B72207S0151K101
Varistors 150VRMS 7MM RADIAL Varistor S07K150
廠商型號:
B72207S0151K101
芯天下內部編號:
125-B72207S0151K101
生產廠商:
EPCOS
描述:
Varistors 150VRMS 7MM RADIAL Varistor S07K150
產品類別:
Circuit Protection|Varistors

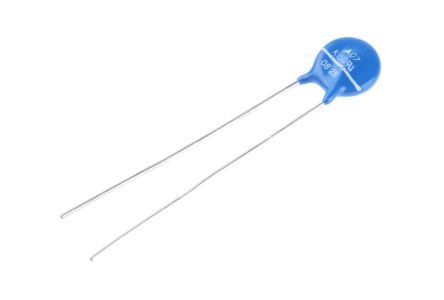

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Product | MOV |
| Voltage Rating DC | 200 V |
| Voltage Rating AC | 150 V |
| Clamping Voltage | 395 V |
| Diameter | 7 mm |
| Peak Surge Current | 1.2 kA |
| Surge Energy Rating | 11 J |
| Capacitance | 170 pF |
| Operating Temperature Range | - 40 C to + 85 C |
| Mounting | Radial |
| Case Diameter | 7 mm |
| Dimensions | 7 mm Dia. x 11 mm L |
| Tolerance | 10 % |
| Clamping Current | 10A |
| Energy | 11J |
| Lead Pitch | 5mm |
| Maximum AC Voltage Rating | 150V |
| Maximum DC Voltage Rating | 200V |
| Maximum Surge Current | 1200A |
| Thickness | 3.8mm |
| Varistor Voltage | 240V |
| rohs | Compliant |
| Technology | Metal Oxide |
| Operating Temp Range | -40C to 85C |
| Packaging | Bulk |
| Lead Spacing | 5 mm |
| Capacitance Value | 170 pF |
| Lead Style | Radial |
| AC Voltage Rating (Max) | 150 VAC |
| DC Voltage Rating (Max) | 200 VDC |
| Surge Current (Max) | 1200 A |
| Product Depth (mm) | 3.8 mm |
| Product Height (mm) | 11 mm |
| Product Diameter (mm) | 9 mm |
| Size Code | Not Required |
| Voltage Tolerance | 10 |
| 能耗 | 11J |
| 可變電阻電壓 | 240V |
| Board Level Components | Y |
| 厚度 | 3.8mm |
| 電容值 | 170pF |
| 最大額定交流電壓 | 150V |
| 鉗位電壓 | 395V |
| 最大浪涌電流 | 1200A |
| 系列 | Standard |
| 直徑 | 9mm |
| 最大直流額定電壓 | 200V |
| 尺寸 | 9 (Dia.) x 3.8mm |
| 鉗位電流 | 10A |
| 引線節距 | 5mm |
