B72220S0111K101
Varistors 115volts 6500A
廠商型號:
B72220S0111K101
芯天下內部編號:
125-B72220S0111K101
生產廠商:
EPCOS
描述:
Varistors 115volts 6500A
產品類別:
Circuit Protection|Varistors
客戶編號:
規格書:
查看PDF

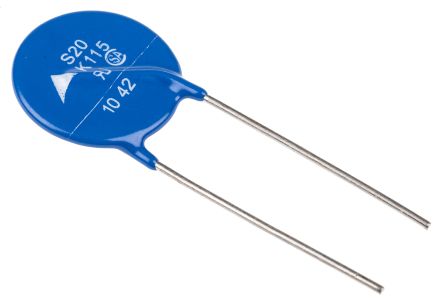

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Varistors |
| RoHS | RoHS Compliant |
| Product | MOV |
| Voltage Rating DC | 150 V |
| Voltage Rating AC | 115 V |
| Clamping Voltage | 300 V |
| Diameter | 20 mm |
| Peak Surge Current | 6.5 kA |
| Capacitance | 1520 pF |
| Operating Temperature Range | - 40 C to + 85 C |
| Mounting | Radial |
| Packaging | Bulk |
| Case Diameter | 20 mm |
| Dimensions | 20 mm Dia. |
| Tolerance | 10 % |
| Clamping Current | 100A |
| Energy | 60J |
| Lead Pitch | 10mm |
| Maximum AC Voltage Rating | 115V |
| Maximum DC Voltage Rating | 150V |
| Maximum Surge Current | 6500A |
| Thickness | 4.7mm |
| Varistor Voltage | 180V |
| rohs | Compliant |
| Series | :B722 |
| Varistor Type | :Metal Oxide Varistor (MOV) |
| Peak Surge Current @ 8/20μs | :6500A |
| Varistor Case | :Disc 20mm |
| Clamping Voltage Vc Max | :300V |
| Peak Energy (10/1000uS) | :60J |
| Voltage Rating V DC | :150V |
| Voltage Rating V AC | :115V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CECC, CSA, UL |
| Body Diameter | :22.5mm |
| Clamping Voltage @ 8/20μs Max | :300V |
| External Depth | :1mm |
| External Length / Height | :26mm |
| Lead Length | :30mm |
| Peak Pulse Current IPP @ 8/20μs | :6500A |
| Suppressor Type | :Varistor |
| Surge Current | :6.5kA |
| Transient Energy | :60J |
| Varistor Voltage @ 1mA | :162V |
| Varistor Voltage @ 1mA Max | :198V |
| Varistor Voltage Tolerance + | :10% |
| Weight (kg) | 0.008 |
| Tariff No. | 85322500 |
| Varistor voltage | 180V |
| Multiplicity | 1 |
| Terminal pitch | 10mm |
| Varistor type | metal-oxide |
| Gross weight | 2.93 g |
| Energy 2 ms | 60J |
| Max body dimensions | ?22.5mm |
| Varistor max current 8/20μs | 6500A |
| Leads dimensions | ?1 x 25mm |
| Max operating voltage | 115V AC, 150V DC |
| Collective package [pcs] | 250 |
| spg | 250 |
