B82498B1472J000
廠商型號:
B82498B1472J000
芯天下內部編號:
125-B82498B1472J000
生產廠商:
EPCOS
描述:
產品類別:
Passive Components|Inductors|High Frequency Inductors - SMD
客戶編號:
規格書:
查看PDF

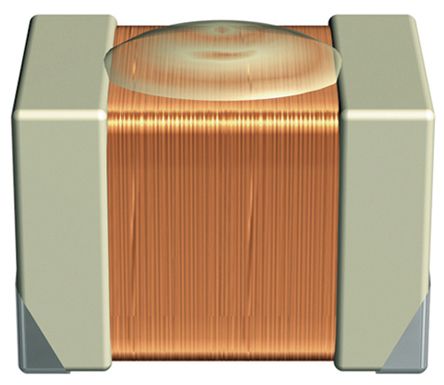

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Range | :EPCOS - B82498B Series |
| Inductance | :4.7μH |
| Inductance Tolerance | :± 5% |
| Inductor Case Style | :0805 [2012 Metric] |
| Self Resonant Frequency Min | :150MHz |
| DC Resistance Max | :3.8ohm |
| DC Current Rating | :90mA |
| Inductor Construction | :Wirewound |
| SVHC | :No SVHC (20-Jun-2013) |
| Core Material | :Ferrite |
| Packaging | :Cut Tape |
| Q Factor | :20 |
| Q Test Frequency | :7.96MHz |
| Reel Quantity | :3000 |
| Weight (kg) | 0.0001 |
| Tariff No. | 85045095 |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| B82498B1472J | EPCOS | Fixed Inductors 4.7uH 7.96MHz 90mA 5% | 查看詳情 |
| B82498B1102J | EPCOS | Fixed Inductors 1uH 7.96MHz 250mA 5% | 查看詳情 |
| B82498B1102J000 | EPCOS | 查看詳情 | |
| B82498B1122J | EPCOS | 查看詳情 | |
| B82498B1122J000 | EPCOS | 查看詳情 | |
| B82498B1152J | EPCOS | 查看詳情 | |
| B82498B1152J000 | EPCOS | 查看詳情 | |
| B82498B1182J | EPCOS | Fixed Inductors 1.8uH 7.96MHz 190mA 5% | 查看詳情 |
| B82498B1182J000 | EPCOS | 查看詳情 | |
| B82498B1222J | EPCOS | Inductor General Purpose Chip Wirewound 2.2uH 5% 7.96MHz 20Q-Factor Ferrite 130mA 1.7Ohm DCR 0805 Blister T/R | 查看詳情 |
| B82498B1222J000 | EPCOS | 查看詳情 | |
| B82498B1332J | EPCOS | 查看詳情 | |
| B82498B1332J000 | EPCOS | 查看詳情 | |
| B82498B1681J | EPCOS | 查看詳情 | |
| B82498B1681J000 | EPCOS | 查看詳情 | |
| B82498B1821J | EPCOS | 查看詳情 | |
| B82498B1821J000 | EPCOS | 查看詳情 | |
| B82498B3100J | EPCOS | Fixed Inductors 10nH 250MHz 700mA 5% | 查看詳情 |
| B82498B3100J000 | EPCOS | 查看詳情 | |
| B82498B3101J | EPCOS | 查看詳情 |
