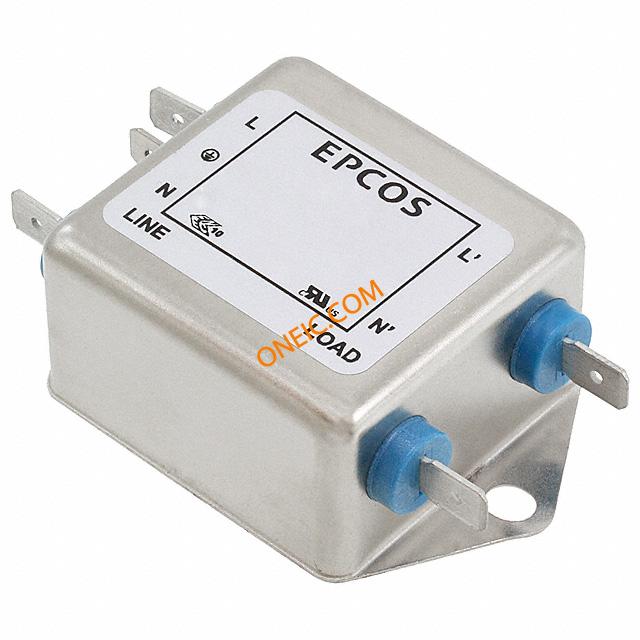

B84111FB116

AC Power Line Filters 2-LINE EMV FILTER 16A 250V

Thumbnail B84111FB116 Thumbnail B84111FB116 Thumbnail B84111FB116 Thumbnail B84111FB116
廠商型號: B84111FB116
芯天下內部編號: 125-B84111FB116
生產廠商:
EPCOS EPCOS
描述: AC Power Line Filters 2-LINE EMV FILTER 16A 250V
產品類別: Filters|Line Filters|B84111F
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Product Length 46
EU RoHS Compliant
Product Depth 74.6
Mounting Flange Mount
Maximum Current Rating 16
Operating Frequency 50|60
Maximum Voltage Rating 250VAC|250VDC
Termination Quick Connect
Product Height 26
Voltage - Rated AC 250V
Mounting Type Chassis
Approvals ENEC, UL
Termination Style Quick Connect
Voltage - Rated DC 250V
Current 16A
Applications Medical
Standard Package 30
Filter Type Single Phase
Configuration Single Stage
Frequency - Operating 50 ~ 60Hz
rohs Lead free / RoHS Compliant
Depth 74.6mm
Dimensions 46 x 74.6 x 26mm
Height 26mm
Length 64mm
Maximum Current Rating 16A
Operating Frequency 60Hz
Factory Pack Quantity 30
Series B84111F0000
Inductance 650 uH
Part # Aliases B84111F0000B116
RoHS RoHS Compliant
Current Rating :16A
Voltage Rating :250V
Leakage Current Max :500μA
Capacitance :0.1μF
Inductance Min :650μH
Filter Terminals :Quick Connect
SVHC :No SVHC (20-Jun-2013)
Capacitance X :0.1μF
Capacitance Y :4700pF
External Depth :26mm
External Length / Height :72mm
External Width :74.6mm
Inductance L1 :650μH
Inductance L2 :650μH
Leakage Current :500μA
No. of Inductors :2
No. of Phases :Single
No. of X Type Capacitors :2
No. of Y Type Capacitors :2
Voltage Rating V AC :250V
Weight (kg) 0.13
Tariff No. 85439000
