B84111FG125
Power Line Filter 50Hz/60Hz 25A 250VAC/250VDC Threaded Stud Flange Mount
廠商型號:
B84111FG125
芯天下內部編號:
125-B84111FG125
生產廠商:
EPCOS
描述:
Power Line Filter 50Hz/60Hz 25A 250VAC/250VDC Threaded Stud Flange Mount
產品類別:
Filters|Line Filters|B84111F
客戶編號:
規格書:
查看PDF

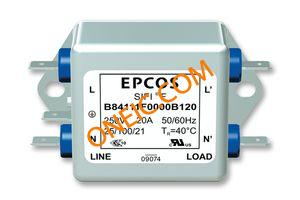

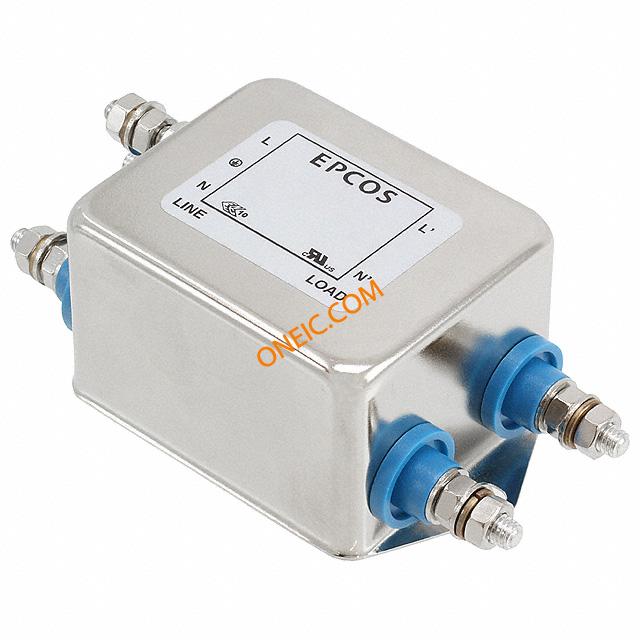

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 52 |
| EU RoHS | Compliant |
| Product Depth | 107 |
| Mounting | Flange Mount |
| Maximum Current Rating | 25 |
| Operating Frequency | 50|60 |
| Maximum Voltage Rating | 250VAC|250VDC |
| Termination | Threaded Stud |
| Product Height | 38 |
| Voltage - Rated AC | 250V |
| Mounting Type | Chassis |
| Approvals | ENEC, UL |
| Termination Style | Threaded Post (M5) |
| Voltage - Rated DC | 250V |
| Current | 25A |
| Applications | Medical |
| Standard Package | 24 |
| Filter Type | Single Phase |
| Configuration | Single Stage |
| Frequency - Operating | 50 ~ 60Hz |
| rohs | Lead free / RoHS Compliant |
| Depth | 107mm |
| Dimensions | 52 x 107 x 38mm |
| Height | 38mm |
| Length | 52mm |
| Maximum Current Rating | 25A |
| Operating Frequency | 60Hz |
| Current Rating | :25A |
| Voltage Rating | :250V |
| Leakage Current Max | :500μA |
| Capacitance | :0.1μF |
| Inductance Min | :0.66mH |
| Filter Terminals | :Stud |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.03 |
| Tariff No. | 85322900 |
