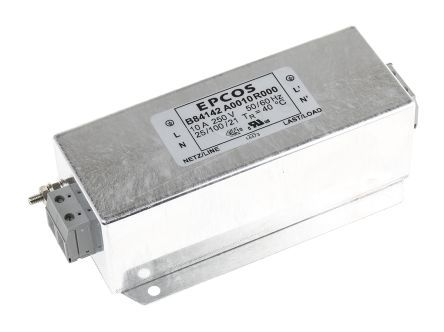

B84142A0010R000
Power Line Filter 50Hz/60Hz 10A 250VAC/250VDC Terminal Block Flange Mount
廠商型號:
B84142A0010R000
芯天下內部編號:
125-B84142A0010R000
生產廠商:
EPCOS
描述:
Power Line Filter 50Hz/60Hz 10A 250VAC/250VDC Terminal Block Flange Mount
產品類別:
Passive|Filter|Power Line Filter
客戶編號:
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Termination | Screw |
| Current Rating (Max) | 10 A |
| Mounting Style | Flange |
| Product Length (mm) | 154.8 mm |
| Product Depth (mm) | 70 mm |
| Product Height (mm) | 44.5 mm |
| Voltage Rating Max | 250VAC/250VDC |
| Operating Frequency | 50/60 Hz |
| Board Level Components | Y |
| 安裝類型 | 法蘭安裝 |
| 高度 | 44.5mm |
| 接端樣式 | 螺絲 |
| 最大額定電壓 | 250 V 交流 |
| 長度 | 154.8mm |
| 系列 | B84142-A |
| 工作頻率 | 60Hz |
| 尺寸 | 154.8 x 70 x 44.5mm |
| 最大額定電流 | 10A |
