B84143B0016R000
廠商型號:
B84143B0016R000
芯天下內部編號:
125-B84143B0016R000
生產廠商:
EPCOS
描述:
產品類別:
Passive|Filter|Power Line Filter
客戶編號:
規格書:
查看PDF

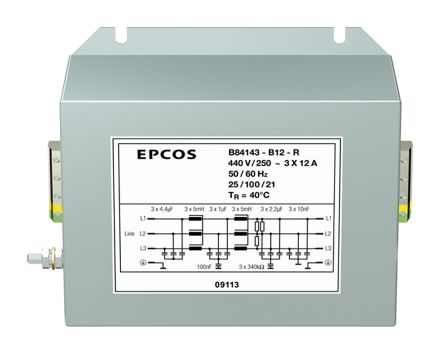

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Termination | Terminal Block |
| Current Rating (Max) | 16 A |
| Mounting Style | Flange |
| Product Length (mm) | 193 mm |
| Product Depth (mm) | 156 mm |
| Product Height (mm) | 81 mm |
| Voltage Rating Max | 440VAC |
| Operating Frequency | 50/60 Hz |
| Filter Type | :EMC |
| Current Rating | :16A |
| Voltage Rating | :440VAC |
| Leakage Current Max | :3.5mA |
| Filter Terminals | :Terminal Block, Stud |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 3.8 |
| Tariff No. | 85363030 |
