BA56-11GWA
LED Displays & Accessories GREEN DIFFUSED 3 DIGIT
廠商型號:
BA56-11GWA
芯天下內部編號:
213-BA56-11GWA
生產廠商:
Kingbright
描述:
LED Displays & Accessories GREEN DIFFUSED 3 DIGIT
產品類別:
Optoelectronics|Displays|LED Displays & Accessories

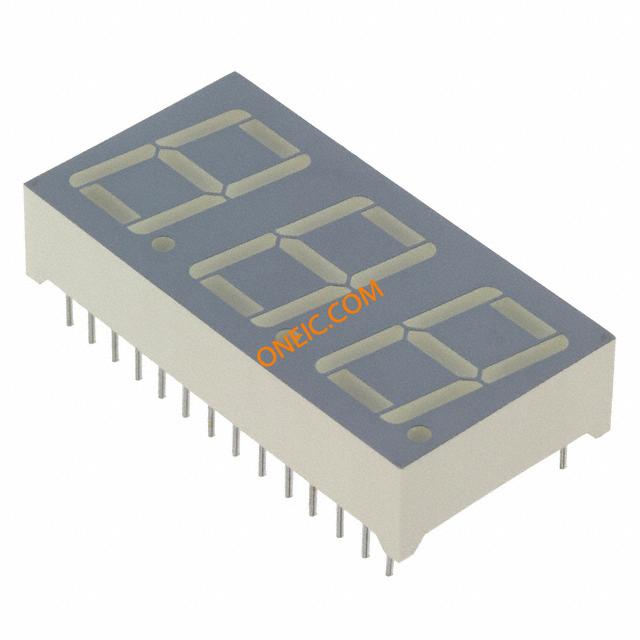

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | LED Displays & Accessories |
| RoHS | RoHS Compliant |
| Display Type | 7 Segment |
| Number of Digits | 3 |
| Character Size | 0.56 in |
| Illumination Color | Green |
| Wavelength | 568 nm |
| Common Pin | Common Anode |
| Operating Supply Voltage | 2.2 V |
| Operating Current | 25 mA |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Packaging | Tube |
| Luminous Intensity | 10500 ucd |
| Factory Pack Quantity | 13 |
| Subcategory | LED Displays Segmented |
| Lead Time | 56 Days |
| Voltage - Forward (Vf) Typ | 2.2V |
| Digit/Alpha Size | 0.56" (14.20mm) |
| Color | Green |
| Size / Dimension | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) |
| Millicandela Rating | 8.6mcd |
| Number of Characters | 3 |
| Wavelength - Peak | 565nm |
| Standard Package | 13 |
| Current - Test | 20mA |
| Power Dissipation (Max) | 62.5mW |
| Package/Case | 28-DIP (0.600", 15.24mm) |
| rohs | Lead free / RoHS Compliant |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Luminous Intensity (Min) | 3000 ucd @10mA |
| SubCategory | Numeric |
| Mounting | Thruhole |
| Material | GaP |
| MainCategory | Displays |
| Lens Color | White Diffused |
| Luminous Intensity (Typ) | 16000 ucd @10mA |
| Wavelength Color | 568nm |
| Size | .56" |
