BAV70

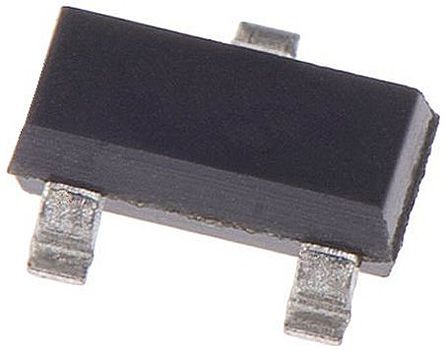

Diode Small Signal Switching 70V 0.2A 3-Pin SOT-23 T/R
廠商型號:
BAV70
芯天下內部編號:
3-BAV70
生產廠商:
fairchild semiconductor
描述:
Diode Small Signal Switching 70V 0.2A 3-Pin SOT-23 T/R
產品類別:
Discrete|Diode|Rectifier
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 3SOT-23 |
| Type | Small Signal Switching Diode |
| Configuration | Dual Common Cathode |
| Peak Reverse Repetitive Voltage | 70 V |
| Peak Average Forward Current | 0.2 A |
| Peak Reverse Recovery Time | 6 ns |
| Peak Reverse Current | 5 uA |
| Peak Forward Voltage | 1.25@0.15A V |
| Peak Non-Repetitive Surge Current | 2 A |
| Operating Temperature | -55 to 150 °C |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Standard Package | Cut Tape |
| Packaging | Tape & Reel (TR) |
| Current - Average Rectified (Io) (per Diode) | 200mA |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Reverse Recovery Time (trr) | 6ns |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 70V |
| Current - Reverse Leakage @ Vr | 5μA @ 70V |
| Diode Configuration | 1 Pair Common Cathode |
| Other Names | BAV70FSTR |
| Speed | Small Signal = |
| Package/Case | TO-236-3, SC-59, SOT-23-3 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 2.92 x 1.3 x 0.93mm |
| Height | 0.93mm |
| Length | 2.92mm |
| Maximum Continuous Forward Current | 0.2A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Package Type | SOT-23 |
| Peak Non-Repetitive Forward Surge Current | 0.002kA |
| Pin Count | 3 |
| Rectifier Type | Small Signal Diode |
| Width | 1.3mm |
| Product Category | Diodes - General Purpose, Power, Switching |
| Factory Pack Quantity | 3000 |
| Series | BAV70 |
| Package / Case | SOT-23 |
| Forward Voltage Drop | 1.25 V at 0.15 A |
| Unit Weight | 0.000882 oz |
| Mounting Style | SMD/SMT |
| Recovery Time | 6 ns |
| Max Surge Current | 2 A |
| Forward Continuous Current | 0.2 A |
| Part # Aliases | BAV70_NL |
| RoHS | RoHS Compliant |
| Operating Temp Range | -55C to 150C |
| Operating Temperature Classification | Military |
| Rad Hardened | No |
| Peak Non-Repetitive Surge Current (Max) | 2 |
| Peak Rep Rev Volt | 70 |
| Rev Curr | 5 |
| Rev Recov Time | 6 |
| Forward Voltage | 1.25 |
| Avg. Forward Curr (Max) | 0.2 |
| DELETED | Compliant |
| Forward Current If(AV) | :200mA |
| Repetitive Reverse Voltage Vrrm Max | :70V |
| Forward Voltage VF Max | :1.25V |
| Reverse Recovery Time trr Max | :6ns |
| Forward Surge Current Ifsm Max | :2A |
| Operating Temperature Max | :150°C |
| Diode Case Style | :SOT-23 |
| No. of Pins | :3 |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.0005 |
| Tariff No. | 85411000 |
| Current If @ Vf | :100mA |
| Current Ifsm | :1A |
| External Depth | :2.5mm |
| External Length / Height | :1.12mm |
| External Width | :3.05mm |
| Forward Current If Max | :50mA |
| Junction Temperature Tj Max | :150°C |
| Peak Forward Current | :600mA |
| Power Dissipation Ptot Max | :350mW |
| Reverse Recovery Time trr Typ | :6ns |
| SMD Marking | :A4 |
