BB26AH-FA
Switch Push Button ON ON DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Alternate Contact PC Pins Thru-Hole
廠商型號:
BB26AH-FA
芯天下內部編號:
240-BB26AH-FA
生產廠商:
NKK Switches
描述:
Switch Push Button ON ON DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Alternate Contact PC Pins Thru-Hole
產品類別:
Switches|Pushbutton Switches|BB

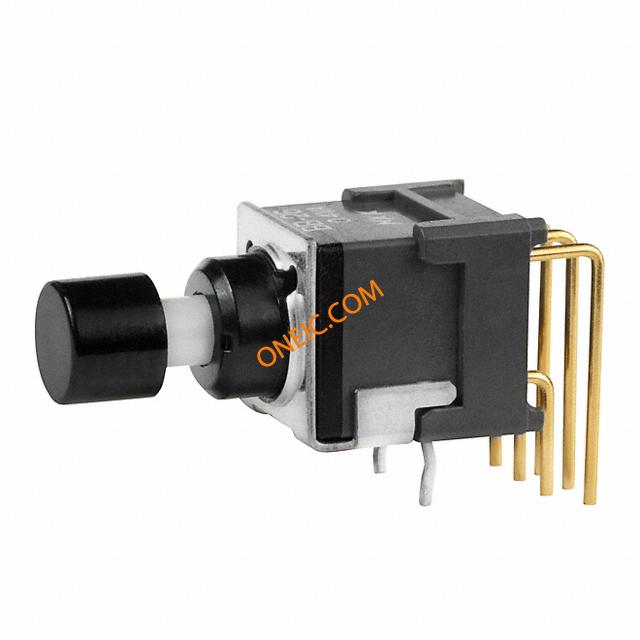

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Pole Throw Configuration | DPDT |
| Mounting | Through Hole |
| Maximum Current Rating | 0.1@28VAC 28VDC |
| Maximum DC Voltage Rating | 28 |
| Function | Alternate Contact |
| EU RoHS | Compliant |
| Maximum Power Rating | 0.4@28VAC 28VDC |
| Contact Plating | Gold |
| Minimum Operating Temperature | -30 |
| Mechanical Life | 25000 |
| Terminal Type | PC Pins |
| Electrical Life | 25000 |
| Product Length | 8.8 |
| Maximum Operating Temperature | 85 |
| Body Orientation | Right Angle |
| Switch Configuration | ON ON |
| Product Depth | 23.3 |
| Actuator Style | Round Plunger |
| Maximum AC Voltage Rating | 28 |
| Product Height | 8.8 |
| Actuator Material | Polyacetal |
| Contact Material | Phosphor Bronze |
| Packaging | Tray |
| Switch Function | On-On |
| Current Rating | 0.4VA (AC/DC) |
| Mounting Type | Through Hole, Right Angle |
| Voltage Rating - AC | 28V |
| Type | Standard |
| Electrical Life | 25,000 Cycles |
| Termination Style | PC Pin |
| Color - Actuator/Cap | Black |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Round, Button |
| Standard Package | 1 |
| Voltage Rating - DC | 28V |
| Mechanical Life | 25,000 Cycles |
| Circuit | DPDT |
| Features | Antistatic |
| rohs | Lead free / RoHS Compliant |
| Contact Configuration | :DPDT |
| Switch Operation | :On-On |
| Contact Voltage AC Nom | :28V |
| Contact Voltage DC Nom | :28V |
| Contact Current Max | :100mA |
| Switch Terminals | :PCB, Solder |
| Weight (kg) | 0 |
| Tariff No. | 85365011 |
